MaxPlus::Vector Class Reference

#include <mpmatrix.h>

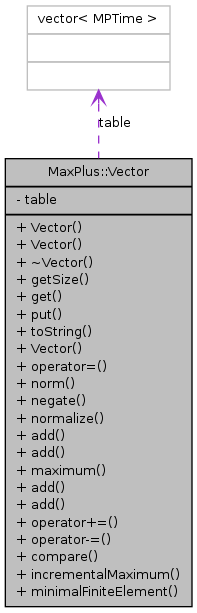

Collaboration diagram for MaxPlus::Vector:

List of all members.

Public Member Functions
	Vector (unsigned int size=0, MPTime value=MP_MINUSINFINITY)
	Vector (std::vector< MPTime > *v)
	~Vector ()
unsigned int	getSize (void) const
MPTime	get (unsigned int row) const
void	put (unsigned int row, MPTime value)
void	toString (CString &outString, double scale=1.0) const
	Vector (const Vector &)
Vector &	operator= (const Vector &)
MPTime	norm ()
void	negate ()
MPTime	normalize ()
Vector *	add (MPTime increase) const
void	add (MPTime increase, Vector *result) const
void	maximum (const Vector *matB, Vector *result) const
Vector *	add (const Vector *vecB) const
void	add (const Vector *vecB, Vector *res) const
Vector &	operator+= (MPTime increase)
Vector &	operator-= (MPTime decrease)
bool	compare (const Vector &v)
Vector &	incrementalMaximum (const Vector *vec)
MPTime	minimalFiniteElement (unsigned int *itsPosition_Ptr=NULL) const
Private Attributes
vector< MPTime >	table

---

Detailed Description

Vector, represents a MaxPlus column vector

---

Constructor & Destructor Documentation

MaxPlus::Vector::Vector	(	unsigned int	size = 0,
		MPTime	value = MP_MINUSINFINITY
	)

Construct a Maxplus vector of size

References table.

Referenced by add().

MaxPlus::Vector::Vector

(

std::vector< MPTime > *

v

)

Construct a Maxplus vector from an std:vector

References table.

MaxPlus::Vector::~Vector

(

)

Destructor of MaxPlus vector

MaxPlus::Vector::Vector

(

const Vector &

other

)

copy constructor

References getSize(), and table.

Here is the call graph for this function:

---

Member Function Documentation

Vector * MaxPlus::Vector::add

(

MPTime

increase

)

const

add scalar to vector

References getSize(), and Vector().

Referenced by add(), operator+=(), and operator-=().

Here is the call graph for this function:

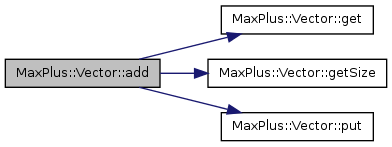

void MaxPlus::Vector::add	(	MPTime	increase,
		Vector *	result
	)			const

add scalar to vector

References getSize(), and put().

Here is the call graph for this function:

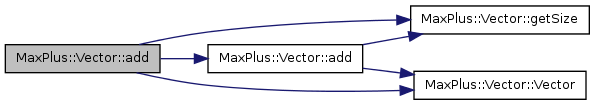

Vector * MaxPlus::Vector::add

(

const Vector *

vecB

)

const

add vectors

References add(), getSize(), and Vector().

Here is the call graph for this function:

void MaxPlus::Vector::add	(	const Vector *	vecB,
		Vector *	res
	)			const

Vector::add add vectors

References get(), getSize(), and put().

Here is the call graph for this function:

bool MaxPlus::Vector::compare

(

const Vector &

v

)

Compare vectors up to MP_EPSILON

References get(), getSize(), and MaxPlus::MP_EPSILON.

Here is the call graph for this function:

MPTime MaxPlus::Vector::get

(

unsigned int

row

)

const [inline]

References table.

Referenced by add(), FSMSADF::ToolAnalyze::analyzeGraph(), analyzeSDFG(), FSMSADF::MPExploreStateSpace::State::compare(), compare(), FSMSADF::MPExplore::Exploration::convertEigenvector(), FSMSADF::MPExploreStateSpace::State::equals(), MaxPlus::VectorList::findSimilar(), MaxPlusAnalysis::State::fromVector(), FSMSADF::MPExplore::State::fromVector(), FSMSADF::MPExploreStateSpace::State::hashValue(), maximum(), MaxPlus::Matrix::mpmultiply(), FSMSADF::MPExploreStateSpace::State::print(), and FSMSADF::MPExploreStateSpace::StateSpaceExploration::printStateSpace().

unsigned int MaxPlus::Vector::getSize

(

void

)

const [inline]

References table.

Referenced by add(), FSMSADF::MPExploreStateSpace::State::addReachableState(), FSMSADF::ToolAnalyze::analyzeGraph(), analyzeSDFG(), FSMSADF::MPExploreStateSpace::State::compare(), compare(), FSMSADF::MPExploreStateSpace::State::equals(), MaxPlus::VectorList::findSimilar(), FSMSADF::MPExploreStateSpace::State::hashValue(), maximum(), minimalFiniteElement(), MaxPlus::Matrix::mpmultiply(), negate(), norm(), normalize(), operator=(), FSMSADF::MPExploreStateSpace::State::print(), FSMSADF::MPExploreStateSpace::StateSpaceExploration::printStateSpace(), MaxPlus::VectorList::toString(), toString(), and Vector().

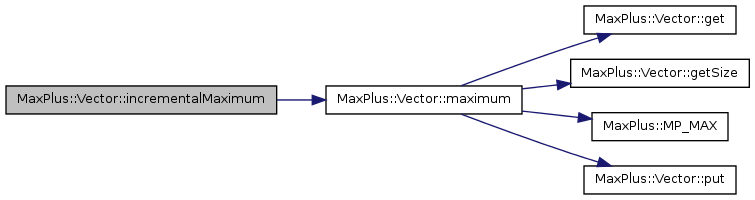

Vector& MaxPlus::Vector::incrementalMaximum

(

const Vector *

vec

)

[inline]

References maximum().

Here is the call graph for this function:

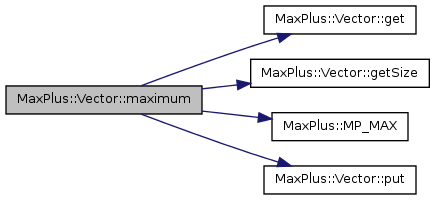

void MaxPlus::Vector::maximum	(	const Vector *	vecB,
		Vector *	result
	)			const

max of vectors

References get(), getSize(), MaxPlus::MP_MAX(), and put().

Referenced by incrementalMaximum().

Here is the call graph for this function:

MPTime MaxPlus::Vector::minimalFiniteElement

(

unsigned int *

itsPosition_Ptr = NULL

)

const

Get minimal finite element returns the smallest amoung the finite elements in the vector or MP_MINUSINFINITY if no finite elements exist itsPosition returns the index of the (a) smallest finite element is set to a pointer to unsigned int, otherwise set or defaults to NULL

References getSize(), MaxPlus::MP_ISMINUSINFINITY(), and MaxPlus::MP_MINUSINFINITY.

Here is the call graph for this function:

void MaxPlus::Vector::negate

(

)

vector negate

References getSize(), MaxPlus::MP_MINUSINFINITY, and put().

Here is the call graph for this function:

MPTime MaxPlus::Vector::norm

(

)

calculate vector norm

References getSize(), MaxPlus::MP_MAX(), and MaxPlus::MP_MINUSINFINITY.

Referenced by normalize().

Here is the call graph for this function:

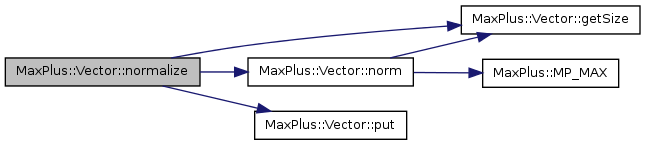

MPTime MaxPlus::Vector::normalize

(

)

normalize vector

References getSize(), MaxPlus::MP_MINUSINFINITY, norm(), and put().

Referenced by FSMSADF::MPExploreStateSpace::State::normalize().

Here is the call graph for this function:

Vector& MaxPlus::Vector::operator+=

(

MPTime

increase

)

[inline]

References add().

Here is the call graph for this function:

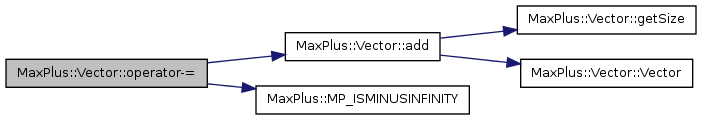

Vector& MaxPlus::Vector::operator-=

(

MPTime

decrease

)

[inline]

References add(), and MaxPlus::MP_ISMINUSINFINITY().

Here is the call graph for this function:

Vector & MaxPlus::Vector::operator=

(

const Vector &

other

)

vector assignmnent

References getSize(), and table.

Here is the call graph for this function:

void MaxPlus::Vector::put	(	unsigned int	row,
		MPTime	value
	)

Put an entry into the vector. Grows vector if necessary

References table.

Referenced by add(), FSMSADF::MPExplore::TokenFIFO::addToVector(), FSMSADF::MPExplore::Exploration::convertEigenvector(), maximum(), MaxPlus::Matrix::mpmultiply(), negate(), and normalize().

void MaxPlus::Vector::toString	(	CString &	outString,
		double	scale = 1.0
	)			const

String representation of vector

References getSize(), and MaxPlus::timeToString().

Referenced by MaxPlus::VectorList::toString().

Here is the call graph for this function:

---

Member Data Documentation

vector<MPTime> MaxPlus::Vector::table [private]

Referenced by get(), getSize(), operator=(), put(), and Vector().

---

The documentation for this class was generated from the following files:

• mpmatrix.h
• mpmatrix.cc
