SDF3 :: SDF3

#include <route.h>

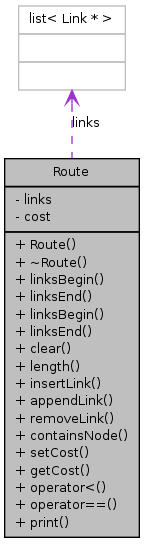

Collaboration diagram for Route:

Collaboration graph

List of all members.

Public Member Functions
	Route ()
	~Route ()
LinksIter	linksBegin ()
LinksIter	linksEnd ()
LinksCIter	linksBegin () const
LinksCIter	linksEnd () const
void	clear ()
uint	length () const
void	insertLink (LinksIter pos, Link *l)
void	appendLink (Link *l)
void	removeLink (Link *l)
bool	containsNode (const Node *n) const
void	setCost (double c)
double	getCost () const
bool	operator< (const Route &r)
bool	operator== (const Route &r) const
ostream &	print (ostream &out) const
Private Attributes
Links	links
double	cost

Detailed Description

Route A route is a sequence of links

Constructor & Destructor Documentation

Route::Route ( ) [inline]

Route::~Route ( ) [inline]

Member Function Documentation

void Route::appendLink ( Link * l )

appendLink () Insert a link at the end of the route.

References links.

Referenced by NoCScheduler::assignSchedulingEntities(), and NoCScheduler::findRoutes().

void Route::clear ( ) [inline]

References links.

bool Route::containsNode ( const Node * n ) const

containsNode () The function returns true if the route goes through the node n. Otherwise it returns false.

References Link::getDstNode(), Link::getSrcNode(), linksBegin(), and linksEnd().

Referenced by NoCScheduler::findRoutes().

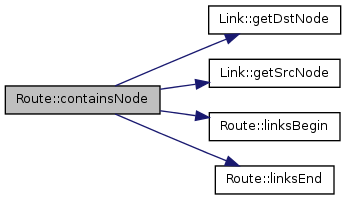

Here is the call graph for this function:

double Route::getCost ( ) const [inline]

References cost.

Referenced by operator<().

void Route::insertLink	(	LinksIter	pos,
		Link *	l
	)

insertLink () Insert a link after the given iterator position into the route.

References links.

uint Route::length ( ) const [inline]

References links.

Referenced by NoCScheduler::findRoutes(), NoCScheduler::findScheduleEntityForMessage(), ClassicNoCScheduler::findScheduleEntityForMessageUsingClassic(), KnowledgeNoCScheduler::findScheduleEntityForMessageUsingKnowledge(), RandomNoCScheduler::findScheduleEntityForMessageUsingRandom(), NoCScheduler::findSlotsOnRoute(), NoCScheduler::maximalDuration(), operator==(), and NoCScheduler::severityConflict().

LinksIter Route::linksBegin ( ) [inline]

References links.

Referenced by containsNode(), SetOfNoCScheduleProblems::createNetworkMappingNode(), NoCScheduler::findFreeSlotsForStream(), NoCScheduler::findFreeSlotsOnFirstLinkRoute(), NoCScheduler::findFreeSlotsOnRoute(), NoCScheduler::findSlotsAllocatedForStream(), NoCScheduler::findSlotsOnRoute(), NoCScheduler::lowerPreferenceLevelSlotsOnRoute(), operator==(), print(), NoCScheduler::raisePreferenceLevelSlotsOnRoute(), NoCScheduler::releaseResources(), NoCScheduler::reserveResources(), KnowledgeNoCScheduler::setRequirementsMessage(), NoCScheduler::severityConflict(), NoCScheduler::sortRoutesOnCost(), ClassicNoCScheduler::sortRoutesOnCostUsingClassic(), and KnowledgeNoCScheduler::sortRoutesOnMessageRequirements().

LinksCIter Route::linksBegin ( ) const [inline]

References links.

LinksCIter Route::linksEnd ( ) const [inline]

References links.

LinksIter Route::linksEnd ( ) [inline]

References links.

Referenced by containsNode(), SetOfNoCScheduleProblems::createNetworkMappingNode(), NoCScheduler::findFreeSlotsForStream(), NoCScheduler::findFreeSlotsOnRoute(), NoCScheduler::findSlotsOnRoute(), NoCScheduler::lowerPreferenceLevelSlotsOnRoute(), operator==(), print(), NoCScheduler::raisePreferenceLevelSlotsOnRoute(), NoCScheduler::releaseResources(), NoCScheduler::reserveResources(), KnowledgeNoCScheduler::setRequirementsMessage(), NoCScheduler::severityConflict(), NoCScheduler::sortRoutesOnCost(), ClassicNoCScheduler::sortRoutesOnCostUsingClassic(), and KnowledgeNoCScheduler::sortRoutesOnMessageRequirements().

bool Route::operator< ( const Route & r ) [inline]

References getCost().

Here is the call graph for this function:

bool Route::operator== ( const Route & r ) const

operator== Two routes are equal if all links are equal.

References length(), linksBegin(), and linksEnd().

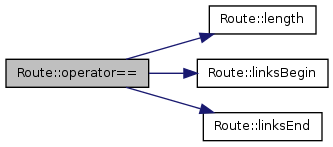

Here is the call graph for this function:

ostream & Route::print ( ostream & out ) const

print () Output a route to the given stream.

References Link::getDstNode(), Node::getId(), linksBegin(), and linksEnd().

Referenced by NoCSchedulingEntity::print().

Here is the call graph for this function:

void Route::removeLink ( Link * l )

removeLink () Remove a link from the route.

References links.

void Route::setCost ( double c ) [inline]

References cost.

Referenced by RandomNoCScheduler::putRoutesInRandomOrder(), NoCScheduler::sortRoutesOnCost(), ClassicNoCScheduler::sortRoutesOnCostUsingClassic(), and KnowledgeNoCScheduler::sortRoutesOnMessageRequirements().

Member Data Documentation

double Route::cost [private]

Referenced by getCost(), and setCost().

Links Route::links [private]

Referenced by appendLink(), clear(), insertLink(), length(), linksBegin(), linksEnd(), and removeLink().

The documentation for this class was generated from the following files:
