Synchronous Dataflow
Graph exporting
Visualization
| Tool | sdf3print-sdf --format dot |
|---|---|
| API | outputSDFasDot() |
SDF3 can export an SDFG in the dot format. Using dotty, graphs can be converted to many different graphics formats. This enables visualization of the SDFG.

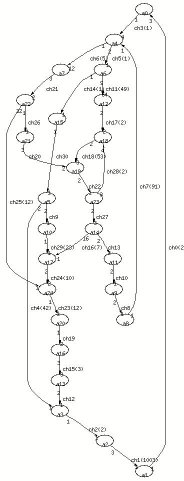

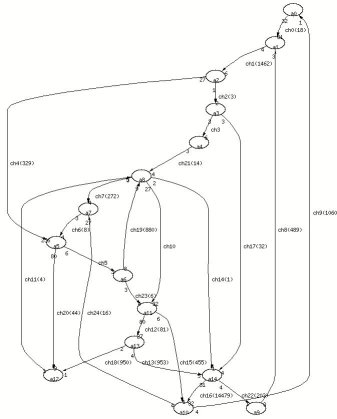

This example shows several SDFGs that are generated using the SDF3 random generator and visualized with SDF3 and dotty.
Simulation
| Tool | sdf3print-sdf --format hapi |
|---|---|
| API | outputSDFasHAPI() |
SDF3 can export an SDFG as a YAPI-network. This allows simulation of the graph using the freely available YAPI simulator.
