CompBindings Class Reference

#include <binding.h>

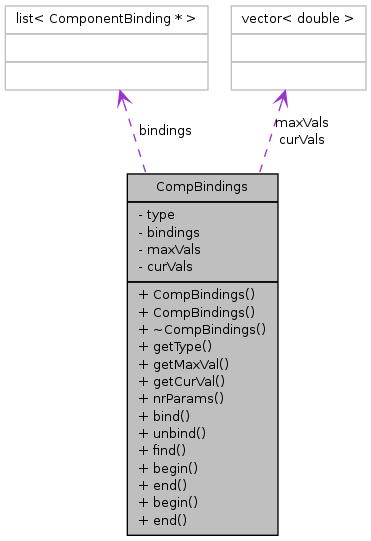

Collaboration diagram for CompBindings:

List of all members.

Public Types
enum	Type { TypeSum = 0, TypeMax }
Public Member Functions
	CompBindings (Type t=TypeSum)
	CompBindings (vector< double > &maxValues, Type t=TypeSum)
	~CompBindings ()
Type	getType () const
double	getMaxVal (const uint param) const
double	getCurVal (const uint param) const
uint	nrParams () const
bool	bind (ComponentBinding *b)
bool	unbind (SDFcomponent *c)
ComponentBinding *	find (SDFcomponent *c)
ComponentBindingsIter	begin ()
ComponentBindingsIter	end ()
ComponentBindingsCIter	begin () const
ComponentBindingsCIter	end () const
Private Attributes
Type	type
ComponentBindings	bindings
vector< double >	maxVals
vector< double >	curVals

---

Detailed Description

CompBindings Container for bindings of components to resource

---

Member Enumeration Documentation

enum CompBindings::Type

Enumerator:

TypeSum
TypeMax

---

Constructor & Destructor Documentation

CompBindings::CompBindings

(

Type

t = TypeSum

)

CompBindings () Constructor.

References type.

CompBindings::CompBindings	(	vector< double > &	maxValues,
		Type	t = TypeSum
	)

CompBindings () Constructor.

References curVals, maxVals, and type.

CompBindings::~CompBindings

(

)

~CompBindings () Destructor.

References begin(), and end().

Here is the call graph for this function:

---

Member Function Documentation

ComponentBindingsIter CompBindings::begin

(

)

[inline]

References bindings.

Referenced by SDFconvertToHTML::convertPlatformMapping(), createMappingNode(), BindingAwareSDFG::extractActorMapping(), BindingAwareSDFG::extractChannelMapping(), find(), SDFconvertToHTML::outputPlatformMappingAsDot(), unbind(), and ~CompBindings().

ComponentBindingsCIter CompBindings::begin

(

)

const [inline]

References bindings.

bool CompBindings::bind

(

ComponentBinding *

b

)

bind () Bind component to resource. On success, resources are claimed and true is returned. Else, the function returns false.

References bindings, curVals, getCurVal(), getType(), ComponentBinding::getValue(), maxVals, nrParams(), and TypeSum.

Referenced by Processor::bindActor(), Connection::bindChannel(), NetworkInterface::reserveConnection(), and Memory::reserveMemory().

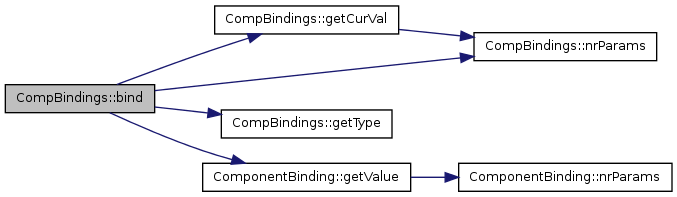

Here is the call graph for this function:

ComponentBindingsIter CompBindings::end

(

)

[inline]

References bindings.

Referenced by SDFconvertToHTML::convertPlatformMapping(), createMappingNode(), BindingAwareSDFG::extractActorMapping(), BindingAwareSDFG::extractChannelMapping(), find(), SDFconvertToHTML::outputPlatformMappingAsDot(), unbind(), and ~CompBindings().

ComponentBindingsCIter CompBindings::end

(

)

const [inline]

ComponentBinding * CompBindings::find

(

SDFcomponent *

c

)

find () Find binding of component to resource.

References begin(), end(), ComponentBinding::getComponent(), and SDFcomponent::getId().

Referenced by LoadBalanceBinding::changeBandwidthAllocation().

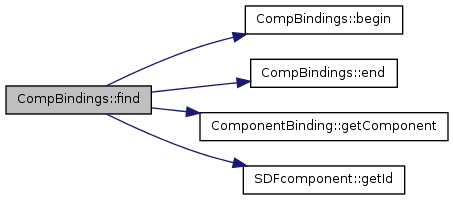

Here is the call graph for this function:

double CompBindings::getCurVal

(

const uint

param

)

const

getCurVal () The function returns the current value of a parameter.

References curVals, and nrParams().

Referenced by NetworkInterface::availableInBandwidth(), Memory::availableMemorySize(), NetworkInterface::availableNrConnections(), NetworkInterface::availableOutBandwidth(), bind(), and Memory::occupiedMemorySizeByActors().

Here is the call graph for this function:

double CompBindings::getMaxVal

(

const uint

param

)

const

getMaxVal () The function returns the maximum value of a parameter.

References maxVals, and nrParams().

Referenced by NetworkInterface::availableInBandwidth(), Memory::availableMemorySize(), NetworkInterface::availableNrConnections(), NetworkInterface::availableOutBandwidth(), NetworkInterface::getInBandwidth(), NetworkInterface::getNrConnections(), NetworkInterface::getOutBandwidth(), and Memory::getSize().

Here is the call graph for this function:

Type CompBindings::getType

(

)

const [inline]

References type.

Referenced by bind(), and unbind().

uint CompBindings::nrParams

(

)

const [inline]

References maxVals.

Referenced by bind(), getCurVal(), getMaxVal(), and unbind().

bool CompBindings::unbind

(

SDFcomponent *

c

)

unbind () Remove binding from component to resource.

References begin(), bindings, curVals, end(), ComponentBinding::getComponent(), getType(), ComponentBinding::getValue(), nrParams(), and TypeMax.

Referenced by NetworkInterface::releaseConnection(), Memory::releaseMemory(), Processor::unbindActor(), and Connection::unbindChannel().

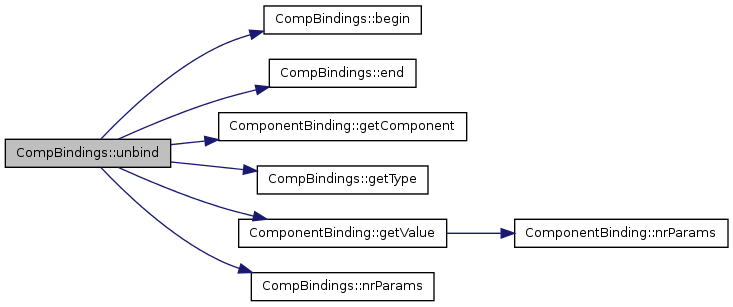

Here is the call graph for this function:

---

Member Data Documentation

ComponentBindings CompBindings::bindings [private]

Referenced by begin(), bind(), end(), and unbind().

vector<double> CompBindings::curVals [private]

Referenced by bind(), CompBindings(), getCurVal(), and unbind().

vector<double> CompBindings::maxVals [private]

Referenced by bind(), CompBindings(), getMaxVal(), and nrParams().

Type CompBindings::type [private]

Referenced by CompBindings(), and getType().

---

The documentation for this class was generated from the following files:

• sdf/resource_allocation/mpsoc_arch/binding.h
• sdf/resource_allocation/mpsoc_arch/binding.cc
