#include <connection.h>

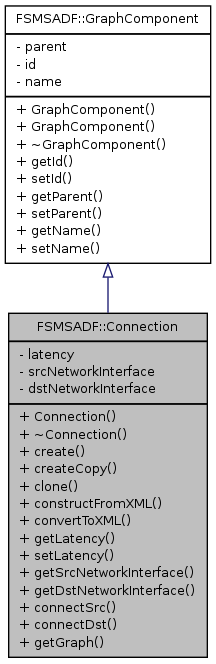

Inheritance diagram for FSMSADF::Connection:

Inheritance graph

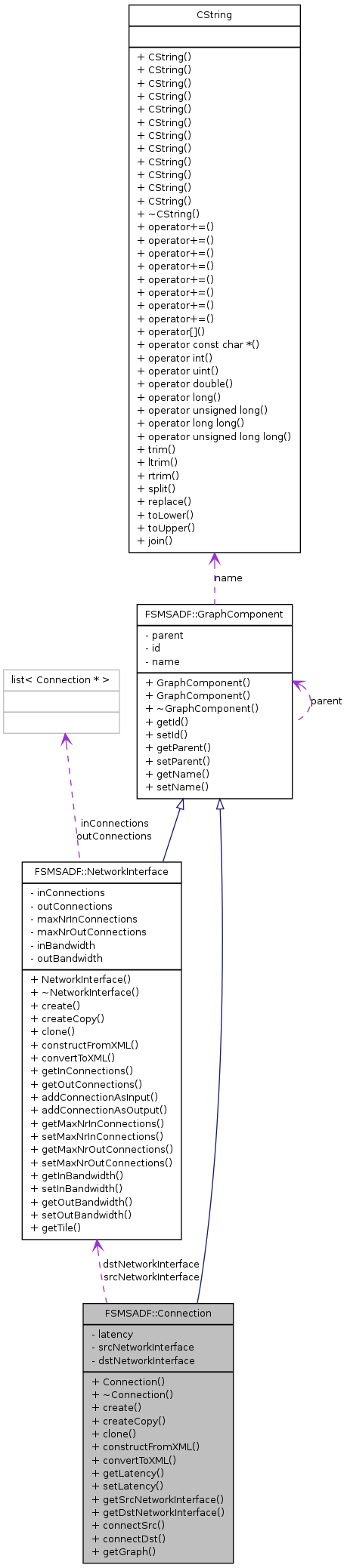

Collaboration diagram for FSMSADF::Connection:

Collaboration graph

List of all members.

Public Member Functions
	Connection (GraphComponent c)
	~Connection ()
Connection *	create (GraphComponent c) const
Connection *	createCopy (GraphComponent c)
Connection *	clone (GraphComponent c)
void	constructFromXML (const CNodePtr connectionNode)
void	convertToXML (const CNodePtr connectionNode)
Time	getLatency () const
void	setLatency (const Time t)
NetworkInterface *	getSrcNetworkInterface ()
NetworkInterface *	getDstNetworkInterface ()
void	connectSrc (NetworkInterface *ni)
void	connectDst (NetworkInterface *ni)
PlatformGraph *	getGraph () const
Private Attributes
Time	latency
NetworkInterface *	srcNetworkInterface
NetworkInterface *	dstNetworkInterface

Detailed Description

Connection Container for connection.

Constructor & Destructor Documentation

Connection::Connection ( GraphComponent c )

Connection () Constructor.

Referenced by create().

Connection::~Connection ( )

~Connection () Destructor.

Member Function Documentation

Connection * Connection::clone ( GraphComponent c )

clone() Create a cloned copy of this connection. Cloning will create a new connection between the source and destination network interface.

References connectDst(), connectSrc(), createCopy(), getDstNetworkInterface(), getGraph(), FSMSADF::GraphComponent::getName(), FSMSADF::Tile::getNetworkInterface(), getSrcNetworkInterface(), and FSMSADF::PlatformGraph::getTile().

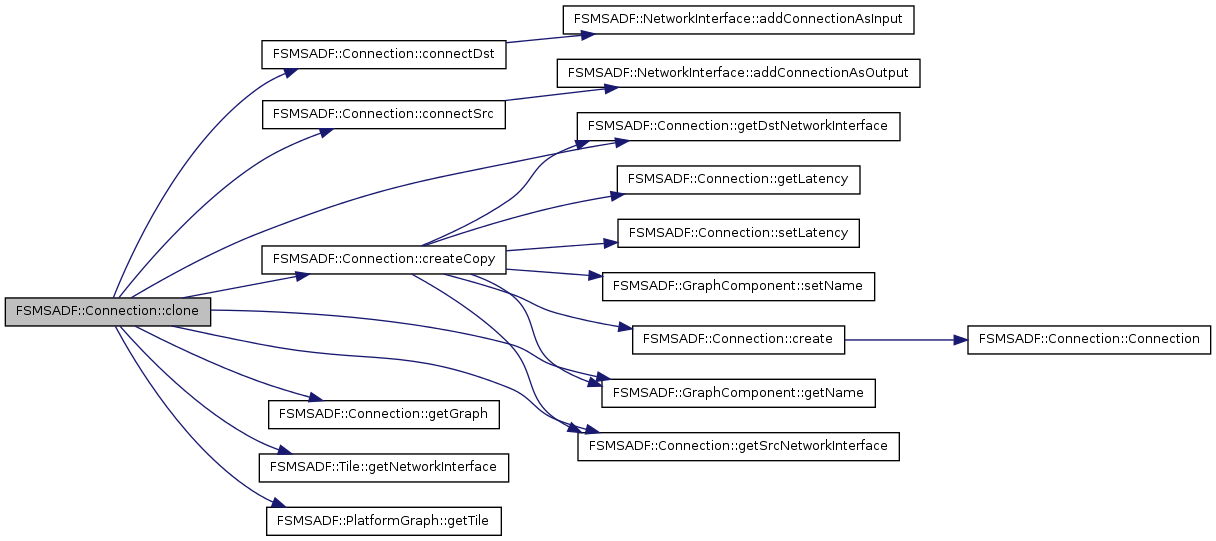

Here is the call graph for this function:

void Connection::connectDst ( NetworkInterface * ni )

connectDst() The function connects the destination of this connection to the supplied network interface.

References FSMSADF::NetworkInterface::addConnectionAsInput(), and dstNetworkInterface.

Referenced by clone(), and constructFromXML().

Here is the call graph for this function:

void Connection::connectSrc ( NetworkInterface * ni )

connectSrc() The function connects the source of this connection to the supplied network interface.

References FSMSADF::NetworkInterface::addConnectionAsOutput(), and srcNetworkInterface.

Referenced by clone(), and constructFromXML().

Here is the call graph for this function:

void Connection::constructFromXML ( const CNodePtr connectionNode )

constructFromXML() The function sets the properties of this connection using the supplied XML node.

References CGetAttribute(), CHasAttribute(), connectDst(), connectSrc(), getGraph(), FSMSADF::Tile::getNetworkInterface(), FSMSADF::PlatformGraph::getTile(), setLatency(), and FSMSADF::GraphComponent::setName().

Referenced by FSMSADF::PlatformGraph::constructFromXML().

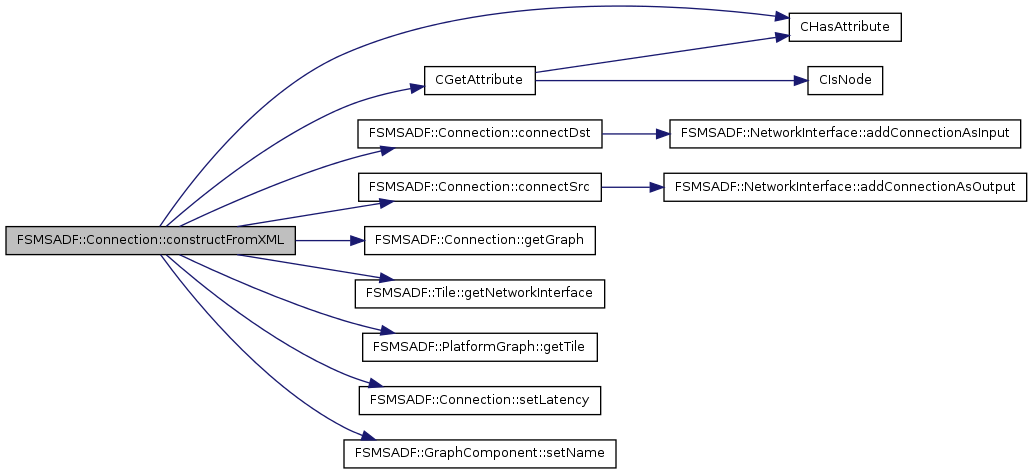

Here is the call graph for this function:

void Connection::convertToXML ( const CNodePtr connectionNode )

convertToXML() The function adds the properties of this connection object to the supplied node.

References CAddAttribute(), dstNetworkInterface, getLatency(), FSMSADF::GraphComponent::getName(), FSMSADF::NetworkInterface::getTile(), and srcNetworkInterface.

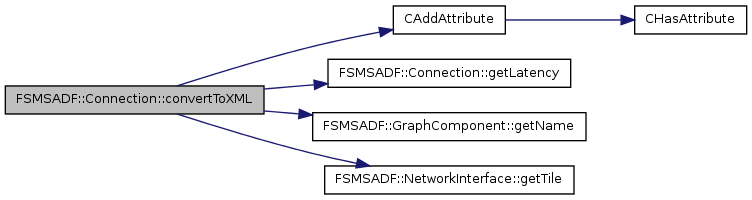

Here is the call graph for this function:

Connection * Connection::create ( GraphComponent c ) const

create() The function returns a new Connection object.

References Connection().

Referenced by createCopy().

Here is the call graph for this function:

Connection * Connection::createCopy ( GraphComponent c )

createCopy() The function returns a copy of this connection object. Note that the network interfaces are not relocated. Use the clone function to enforce relocation.

References create(), dstNetworkInterface, getDstNetworkInterface(), getLatency(), FSMSADF::GraphComponent::getName(), getSrcNetworkInterface(), setLatency(), FSMSADF::GraphComponent::setName(), and srcNetworkInterface.

Referenced by clone().

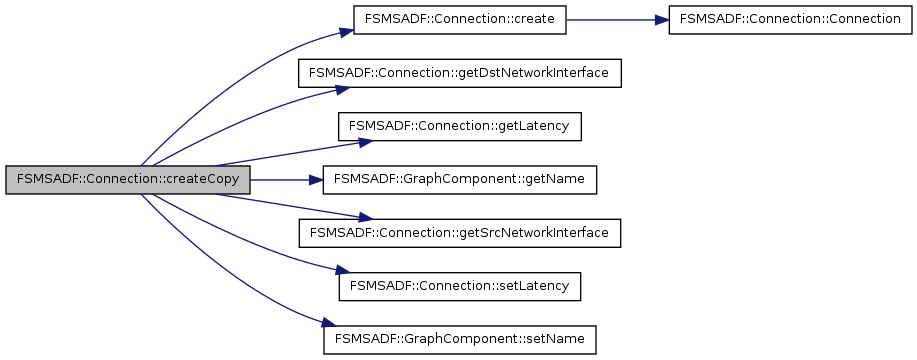

Here is the call graph for this function:

NetworkInterface* FSMSADF::Connection::getDstNetworkInterface ( ) [inline]

References dstNetworkInterface.

Referenced by clone(), FSMSADF::OutputHTML::convertPlatformBindingToPNG(), FSMSADF::OutputHTML::convertPlatformGraphToPNG(), createCopy(), and FSMSADF::OutputHTML::printPlatformGraph().

PlatformGraph* FSMSADF::Connection::getGraph ( ) const [inline]

Referenced by clone(), constructFromXML(), and FSMSADF::OutputHTML::getConnectionURL().

Time FSMSADF::Connection::getLatency ( ) const [inline]

References latency.

Referenced by convertToXML(), createCopy(), FSMSADF::BindingAwareGraph::createMappedChannelToConnectionNSoC(), and FSMSADF::OutputHTML::printPlatformGraph().

NetworkInterface* FSMSADF::Connection::getSrcNetworkInterface ( ) [inline]

References srcNetworkInterface.

Referenced by clone(), FSMSADF::OutputHTML::convertPlatformBindingToPNG(), FSMSADF::OutputHTML::convertPlatformGraphToPNG(), createCopy(), and FSMSADF::OutputHTML::printPlatformGraph().

void FSMSADF::Connection::setLatency ( const Time t ) [inline]

References latency.

Referenced by constructFromXML(), and createCopy().

Member Data Documentation

NetworkInterface* FSMSADF::Connection::dstNetworkInterface [private]

Referenced by connectDst(), convertToXML(), createCopy(), and getDstNetworkInterface().

Time FSMSADF::Connection::latency [private]

Referenced by getLatency(), and setLatency().

NetworkInterface* FSMSADF::Connection::srcNetworkInterface [private]

Referenced by connectSrc(), convertToXML(), createCopy(), and getSrcNetworkInterface().
