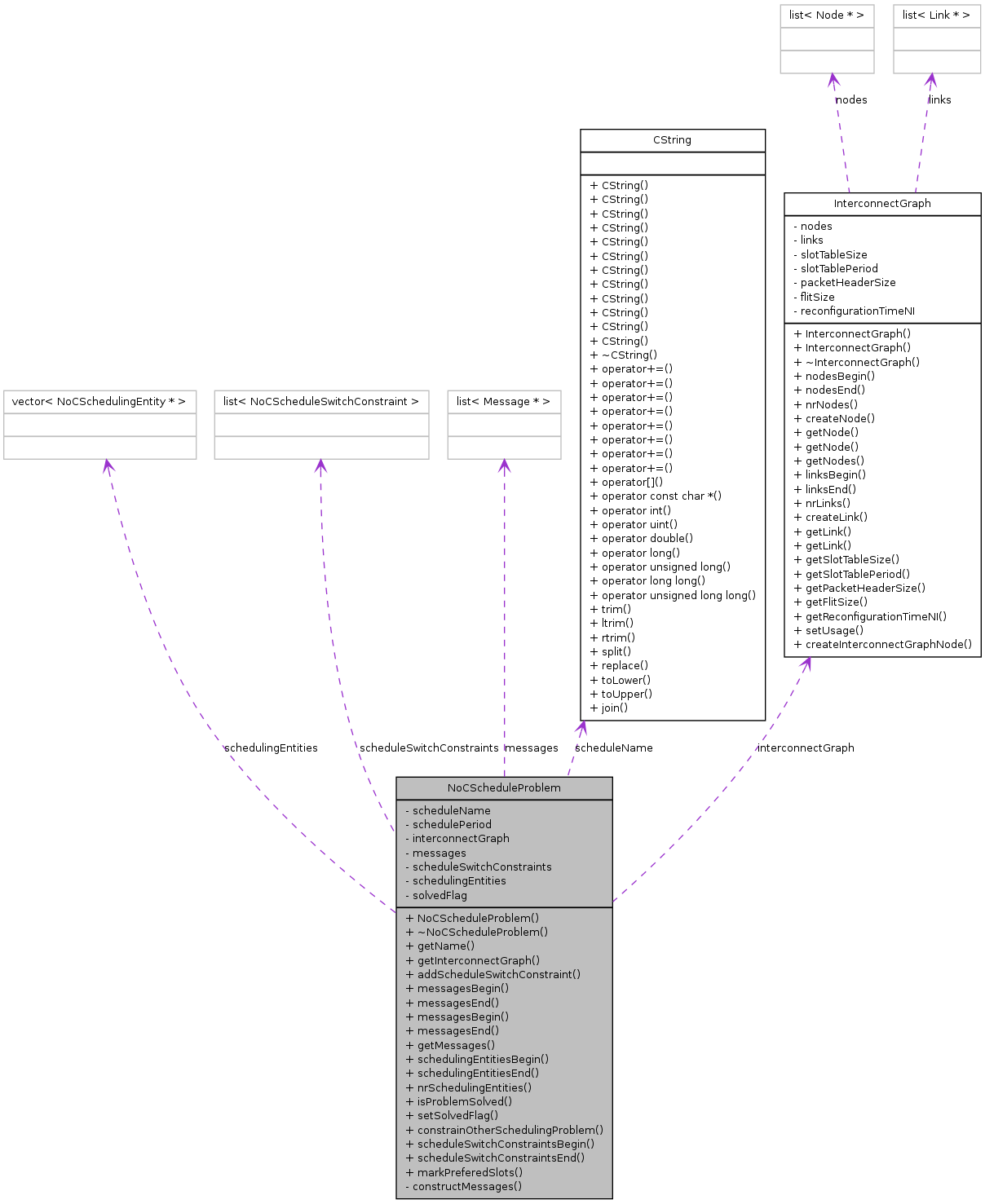

Collaboration diagram for NoCScheduleProblem:

Public Member Functions
	NoCScheduleProblem (CString name, CNode messagesNode, CNode archGraphNode, CNode *systemUsageNode)
	~NoCScheduleProblem ()
CString	getName () const
InterconnectGraph *	getInterconnectGraph () const
void	addScheduleSwitchConstraint (NoCScheduleSwitchConstraint &s)
MessagesIter	messagesBegin ()
MessagesIter	messagesEnd ()
MessagesCIter	messagesBegin () const
MessagesCIter	messagesEnd () const
Messages &	getMessages ()
NoCSchedulingEntitiesIter	schedulingEntitiesBegin ()
NoCSchedulingEntitiesIter	schedulingEntitiesEnd ()
uint	nrSchedulingEntities () const
bool	isProblemSolved () const
bool	setSolvedFlag (bool flag)
void	constrainOtherSchedulingProblem (NoCScheduleProblem *p)
NoCScheduleSwitchConstraintsIter	scheduleSwitchConstraintsBegin ()
NoCScheduleSwitchConstraintsIter	scheduleSwitchConstraintsEnd ()
void	markPreferedSlots (InterconnectGraph *g)
Private Member Functions
void	constructMessages (CNode messagesNode, InterconnectGraph archGraph)
Private Attributes
CString	scheduleName
TTime	schedulePeriod
InterconnectGraph *	interconnectGraph
Messages	messages
NoCScheduleSwitchConstraints	scheduleSwitchConstraints
NoCSchedulingEntities	schedulingEntities
bool	solvedFlag

Detailed Description

NoCScheduleProblem A NoC scheduling problem (single set of messages)

Constructor & Destructor Documentation

NoCScheduleProblem::NoCScheduleProblem	(	CString	name,
		CNode *	messagesNode,
		CNode *	archGraphNode,
		CNode *	systemUsageNode
	)

NoCScheduleProblem () Constructor.

References CGetAttribute(), constructMessages(), interconnectGraph, scheduleName, schedulePeriod, InterconnectGraph::setUsage(), and solvedFlag.

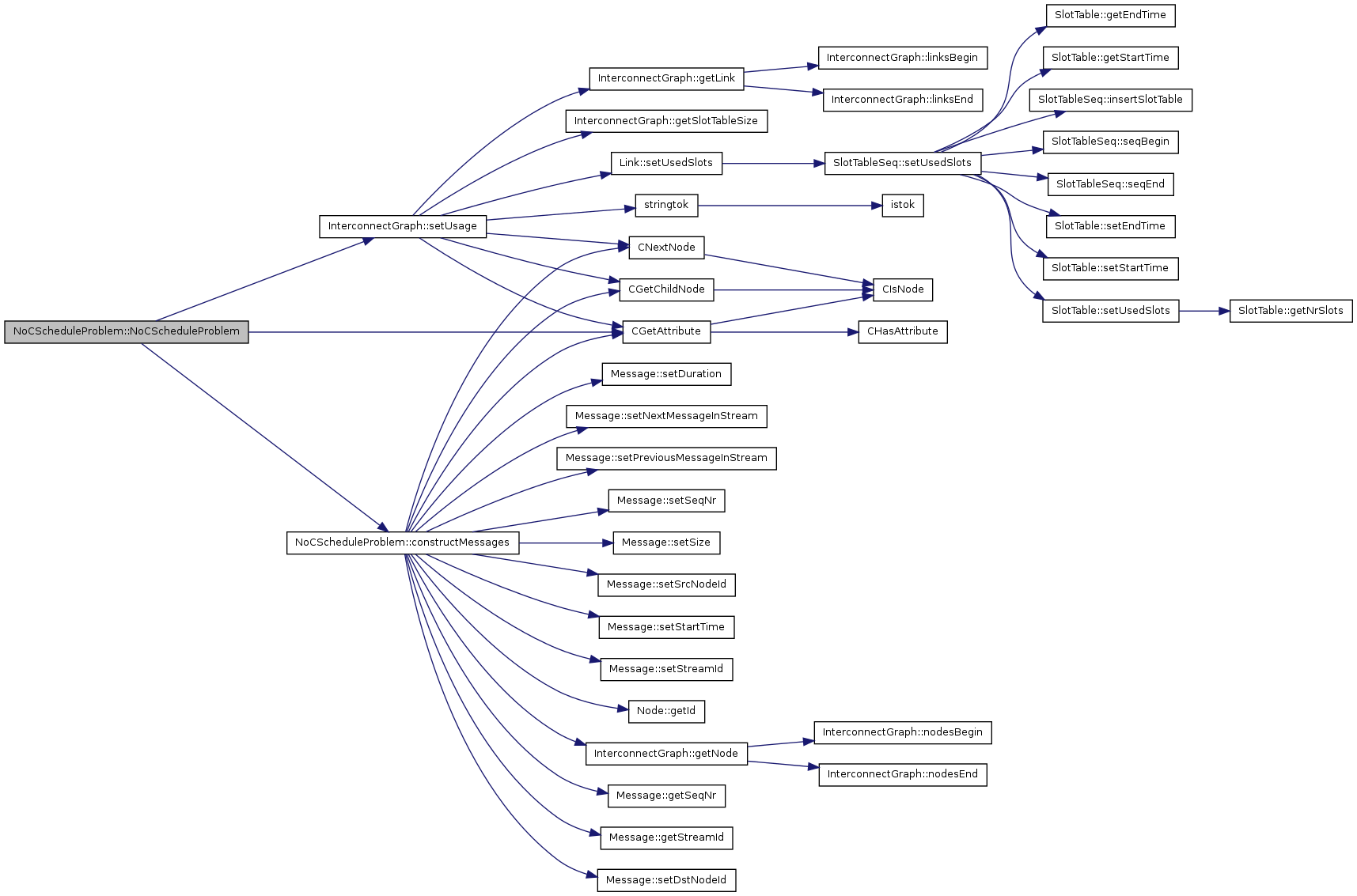

Here is the call graph for this function:

NoCScheduleProblem::~NoCScheduleProblem ( )

~ScheduleProblem () Destructor.

References interconnectGraph, and messages.

Member Function Documentation

void NoCScheduleProblem::addScheduleSwitchConstraint ( NoCScheduleSwitchConstraint & s ) [inline]

References scheduleSwitchConstraints.

Referenced by SetOfNoCScheduleProblems::SetOfNoCScheduleProblems().

void NoCScheduleProblem::constrainOtherSchedulingProblem ( NoCScheduleProblem * p )

constrainOtherSchedulingProblem () The function marks slots on links of the interconnect graph in the schedule problem p which it uses in its own schedule.

It is possible that the overlap between the schedules contains multiple periods of the source and/or destination schedule.

References _NoCScheduleSwitchConstraint::from, SlotTable::getEndTime(), getInterconnectGraph(), InterconnectGraph::getLink(), Link::getName(), getName(), InterconnectGraph::getSlotTablePeriod(), SlotTable::getStartTime(), SlotTable::getUsedSlotsOfSchedule(), interconnectGraph, isProblemSolved(), InterconnectGraph::linksBegin(), InterconnectGraph::linksEnd(), _NoCScheduleSwitchConstraint::overlap, schedulePeriod, scheduleSwitchConstraints, Link::setUsedSlots(), Link::slotTableSeqBegin(), Link::slotTableSeqEnd(), and _NoCScheduleSwitchConstraint::to.

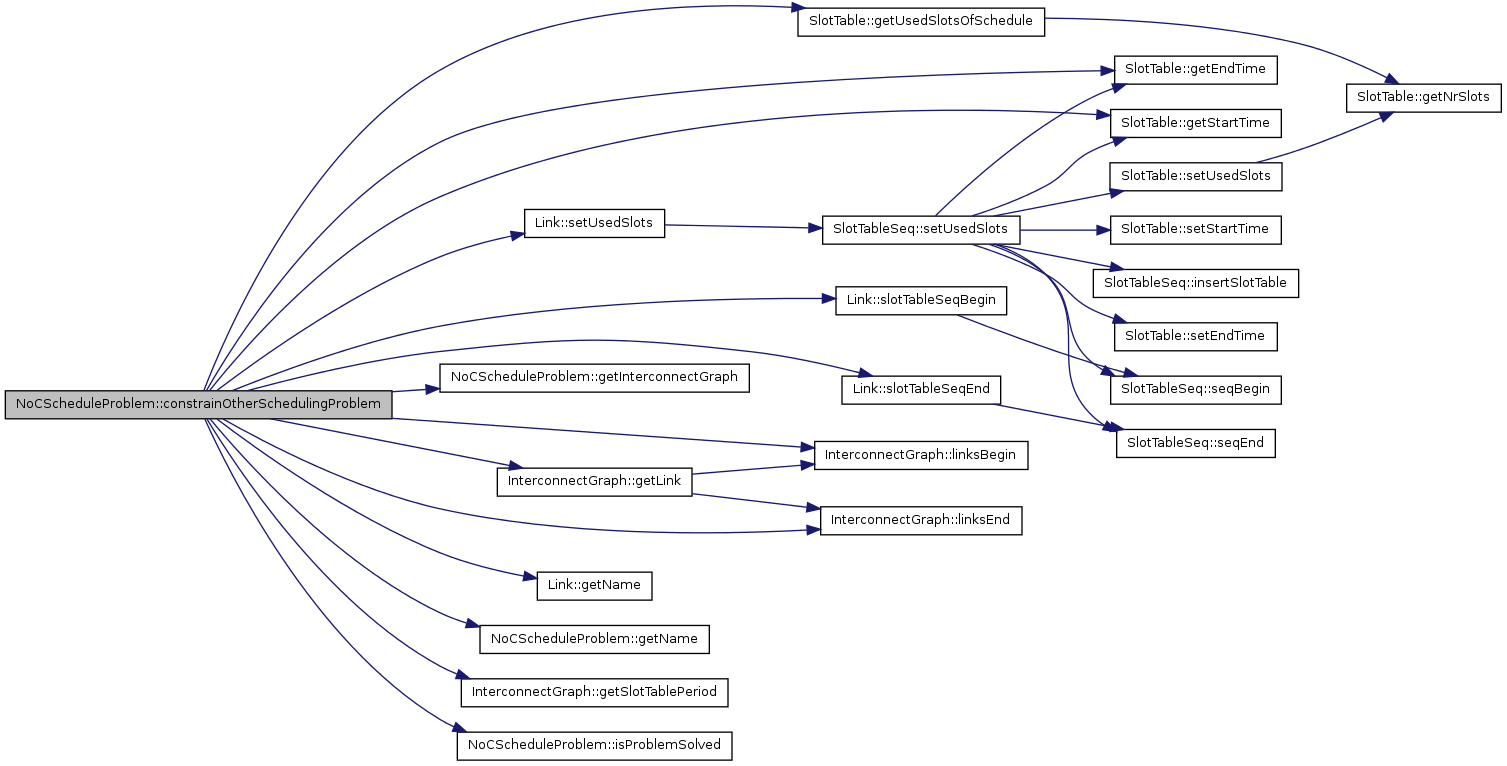

Here is the call graph for this function:

void NoCScheduleProblem::constructMessages	(	CNode *	messagesNode,
		InterconnectGraph *	archGraph
	)			`[private]`

constructMessages () The function constructs a list of all messages from an XML document.

References CGetAttribute(), CGetChildNode(), CNextNode(), Node::getId(), InterconnectGraph::getNode(), Message::getSeqNr(), Message::getStreamId(), messages, Message::setDstNodeId(), Message::setDuration(), Message::setNextMessageInStream(), Message::setPreviousMessageInStream(), Message::setSeqNr(), Message::setSize(), Message::setSrcNodeId(), Message::setStartTime(), and Message::setStreamId().

Referenced by NoCScheduleProblem().

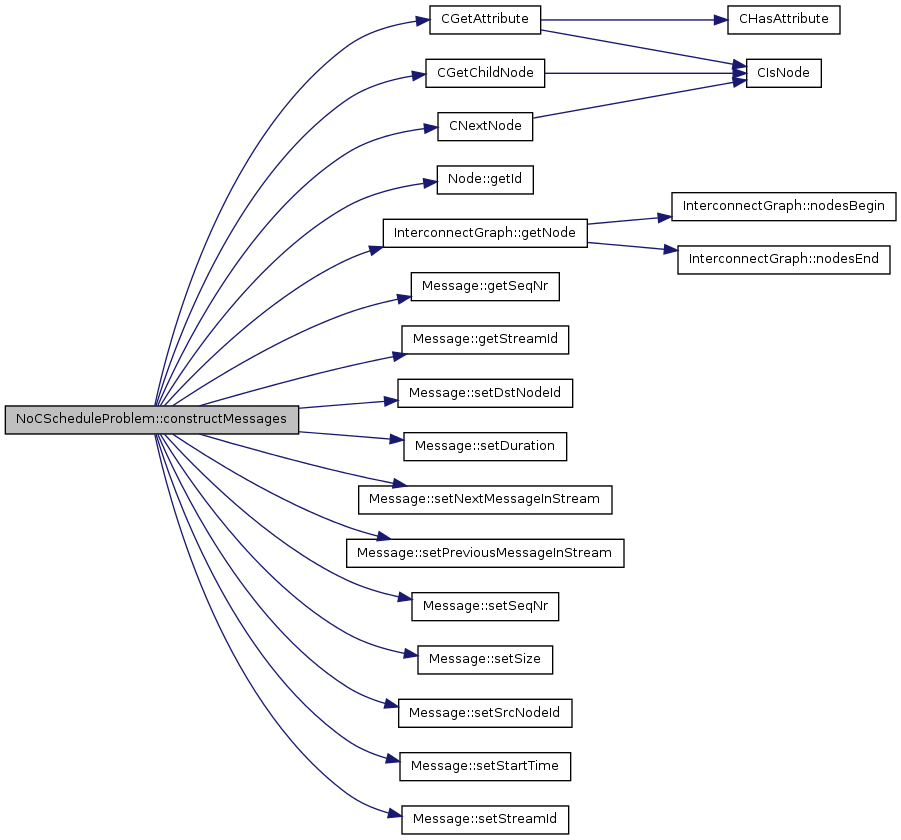

Here is the call graph for this function:

InterconnectGraph* NoCScheduleProblem::getInterconnectGraph ( ) const [inline]

References interconnectGraph.

Referenced by constrainOtherSchedulingProblem(), SDFconvertToHTML::convertInterconnectUsage(), SetOfNoCScheduleProblems::createNetworkUsageNode(), NoCScheduler::getInterconnectGraph(), NoCScheduler::markPreferedSlotsOnLinks(), and NoCMapping::updateBandwidthAllocations().

Messages& NoCScheduleProblem::getMessages ( ) [inline]

References messages.

Referenced by RandomNoCScheduler::putMessagesInRandomOrder(), NoCScheduler::ripupScheduleEntity(), NoCScheduler::ripupStream(), and NoCScheduler::sortMessagesOnCost().

CString NoCScheduleProblem::getName ( ) const [inline]

References scheduleName.

Referenced by NoCScheduler::assignSchedulingEntities(), constrainOtherSchedulingProblem(), SDFconvertToHTML::convertInterconnectMapping(), SetOfNoCScheduleProblems::createNetworkMappingNode(), NoCScheduler::schedule(), and SetOfNoCScheduleProblems::SetOfNoCScheduleProblems().

bool NoCScheduleProblem::isProblemSolved ( ) const [inline]

References solvedFlag.

Referenced by constrainOtherSchedulingProblem(), NoCScheduler::markPreferedSlotsOnLinks(), and NoCScheduler::schedule().

void NoCScheduleProblem::markPreferedSlots ( InterconnectGraph * g )

markPreferedSlots () The function marks all slots in all links of the interconnect graph as prefered slots (with the maximal preference level - UINT_MAX) when this slot is used in the corresponding link of the interconnect graph g.

References Link::getId(), InterconnectGraph::getLink(), InterconnectGraph::getSlotTableSize(), interconnectGraph, InterconnectGraph::linksBegin(), InterconnectGraph::linksEnd(), and Link::preferredSlots.

Referenced by NoCScheduler::markPreferedSlotsOnLinks().

Here is the call graph for this function:
