#include <buffer.h>

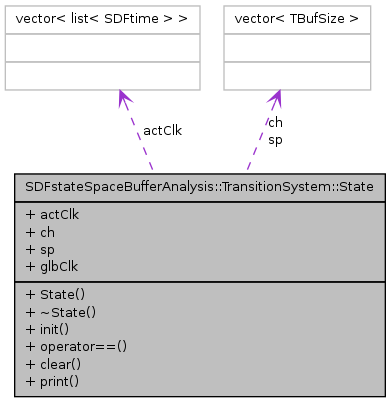

Collaboration diagram for SDFstateSpaceBufferAnalysis::TransitionSystem::State:

Collaboration graph

List of all members.

Public Member Functions
	State (const uint nrActors=0, const uint nrChannels=0)
	~State ()
void	init (const uint nrActors, const uint nrChannels)
bool	operator== (const State &s)
void	clear ()
void	print (ostream &out)
Public Attributes
vector< list< SDFtime > >	actClk
vector< TBufSize >	ch
vector< TBufSize >	sp
unsigned long	glbClk

Constructor & Destructor Documentation

SDFstateSpaceBufferAnalysis::TransitionSystem::State::State	(	const uint	nrActors = `0`,
		const uint	nrChannels = `0`
	)			`[inline]`

References init().

Here is the call graph for this function:

SDFstateSpaceBufferAnalysis::TransitionSystem::State::~State ( ) [inline]

Member Function Documentation

void SDFstateSpaceBufferAnalysis::TransitionSystem::State::clear ( )

clearState () The function sets the state to zero.

References actClk, ch, glbClk, and sp.

Referenced by SDFstateSpaceBufferAnalysis::TransitionSystem::execSDFgraph().

void SDFstateSpaceBufferAnalysis::TransitionSystem::State::init	(	const uint	nrActors,
		const uint	nrChannels
	)			`[inline]`

References actClk, ch, and sp.

Referenced by SDFstateSpaceBufferAnalysis::TransitionSystem::execSDFgraph(), and State().

bool SDFstateSpaceBufferAnalysis::TransitionSystem::State::operator== ( const State & s )

operator== () The function compares to states and returns true if they are equal.

References actClk, ch, glbClk, and sp.

void SDFstateSpaceBufferAnalysis::TransitionSystem::State::print ( ostream & out )

printState () Print the state to the supplied stream.

References actClk, ch, glbClk, and sp.

Member Data Documentation

vector< list<SDFtime> > SDFstateSpaceBufferAnalysis::TransitionSystem::State::actClk

Referenced by SDFstateSpaceBufferAnalysis::TransitionSystem::actorReadyToEnd(), clear(), SDFstateSpaceBufferAnalysis::TransitionSystem::clockStep(), SDFstateSpaceBufferAnalysis::TransitionSystem::endActorFiring(), init(), operator==(), print(), and SDFstateSpaceBufferAnalysis::TransitionSystem::startActorFiring().

vector< TBufSize > SDFstateSpaceBufferAnalysis::TransitionSystem::State::ch

Referenced by SDFstateSpaceBufferAnalysis::TransitionSystem::analyzePeriodicPhase(), clear(), SDFstateSpaceBufferAnalysis::TransitionSystem::execSDFgraph(), init(), operator==(), and print().

unsigned long SDFstateSpaceBufferAnalysis::TransitionSystem::State::glbClk

Referenced by SDFstateSpaceBufferAnalysis::TransitionSystem::analyzePeriodicPhase(), clear(), SDFstateSpaceBufferAnalysis::TransitionSystem::clockStep(), SDFstateSpaceBufferAnalysis::TransitionSystem::computeThroughput(), SDFstateSpaceBufferAnalysis::TransitionSystem::execSDFgraph(), operator==(), and print().

vector< TBufSize > SDFstateSpaceBufferAnalysis::TransitionSystem::State::sp

Referenced by SDFstateSpaceBufferAnalysis::TransitionSystem::analyzePeriodicPhase(), clear(), SDFstateSpaceBufferAnalysis::TransitionSystem::execSDFgraph(), init(), operator==(), and print().

The documentation for this class was generated from the following files:
