sdf/output/buffer_throughput/buffy.h File Reference

#include "../../base/timed/graph.h"

Include dependency graph for sdf/output/buffer_throughput/buffy.h:

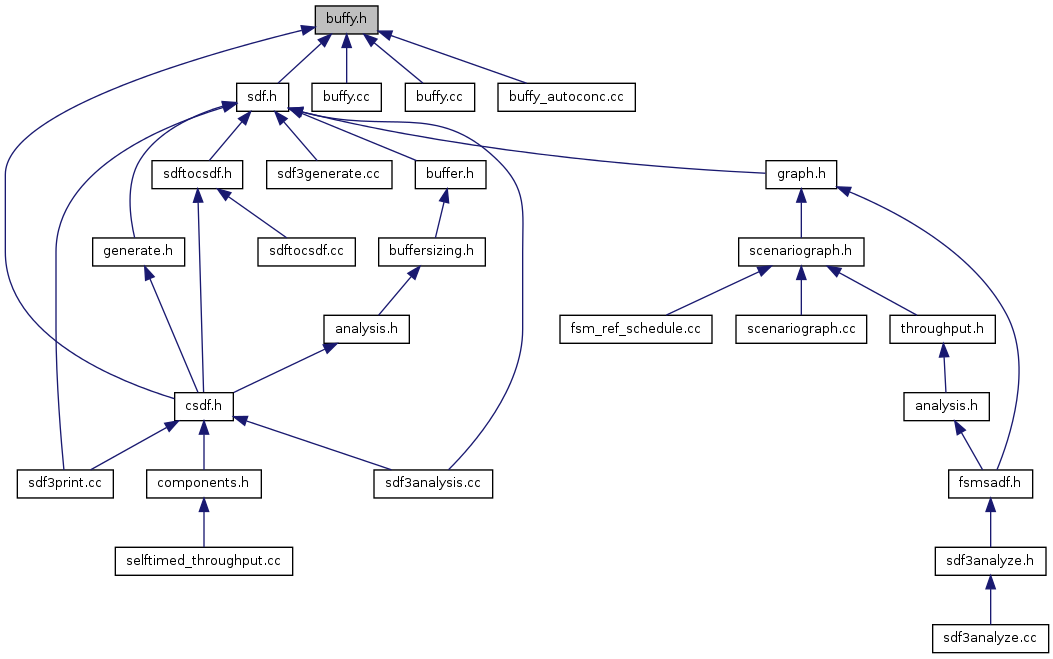

This graph shows which files directly or indirectly include this file:

Functions
void	outputSDFasBuffyModel (TimedSDFgraph *g, ostream &out, CString &output_actor, unsigned long long stackSz, unsigned long long hashSz, unsigned long long depStackSz)
void	outputSDFasBuffyModelThroughput (TimedSDFgraph *g, ostream &out, CString &output_actor, unsigned long long stackSz, unsigned long long hashSz, unsigned long long depStackSz)
void	outputSDFasStateSpaceThroughputModel (TimedSDFgraph *g, ostream &out, unsigned long long stackSz, unsigned long long hashSz)

---

Function Documentation

void outputSDFasBuffyModel	(	TimedSDFgraph *	g,
		ostream &	out,
		CString &	output_actor,
		unsigned long long	stackSz,
		unsigned long long	hashSz,
		unsigned long long	depStackSz
	)

outputSDfasBuffyModel () Output the SDF graph as a buffy model.

References printDefinitions(), printDependencies(), printDistribution(), printHash(), printMain(), printMiscFunctions(), printSdf(), printStack(), and printState().

Referenced by printSDFG().

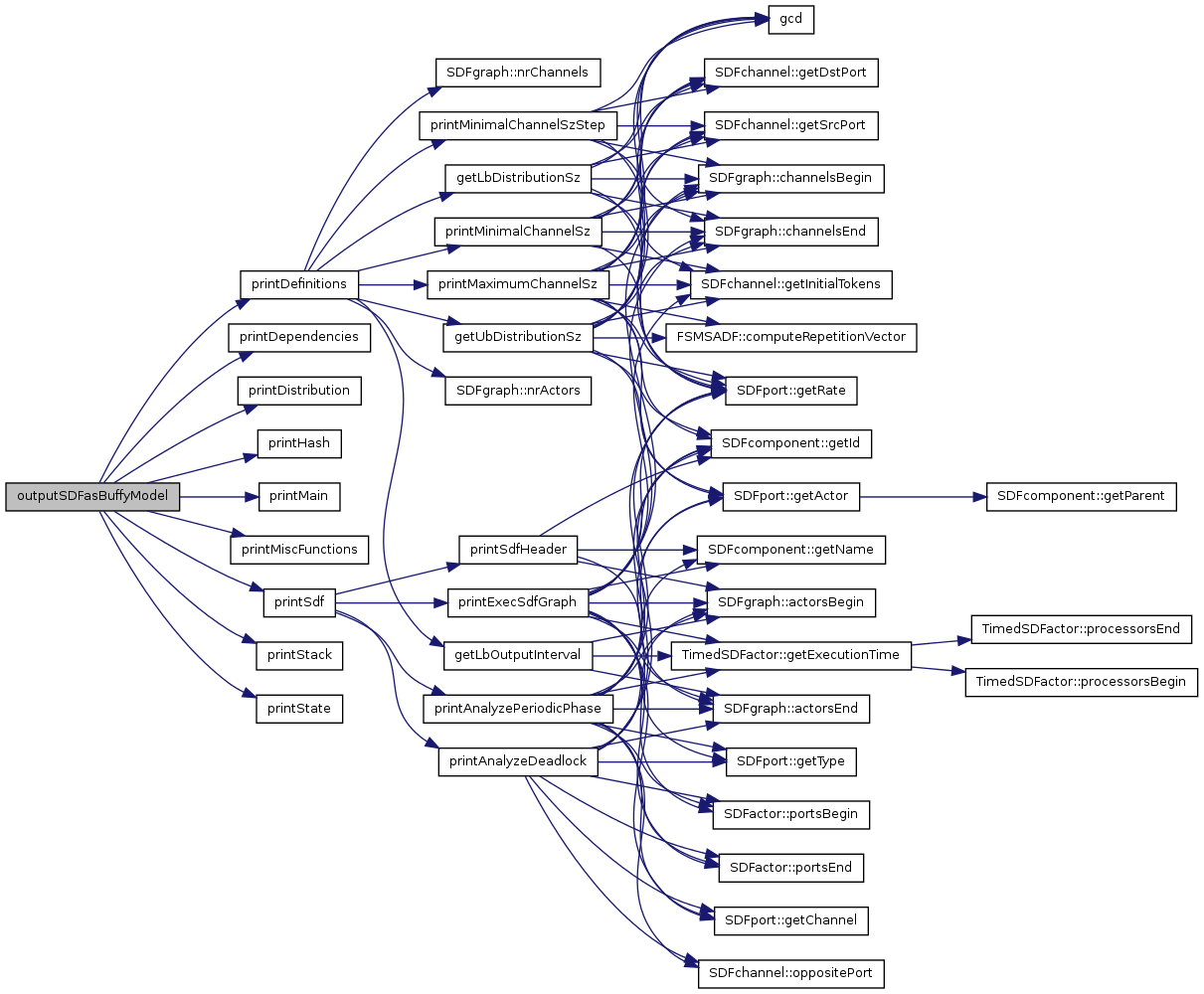

Here is the call graph for this function:

void outputSDFasBuffyModelThroughput	(	TimedSDFgraph *	g,
		ostream &	out,
		CString &	output_actor,
		unsigned long long	stackSz,
		unsigned long long	hashSz,
		unsigned long long	depStackSz
	)

outputSDfasBuffyModelThroughput () Output the SDF graph as a buffy model to find the maximal throughput for a given distribution size.

References printDefinitions(), printDependencies(), printDistribution(), printHash(), printMain(), printMiscFunctions(), printSdf(), printStack(), and printState().

Referenced by printSDFG().

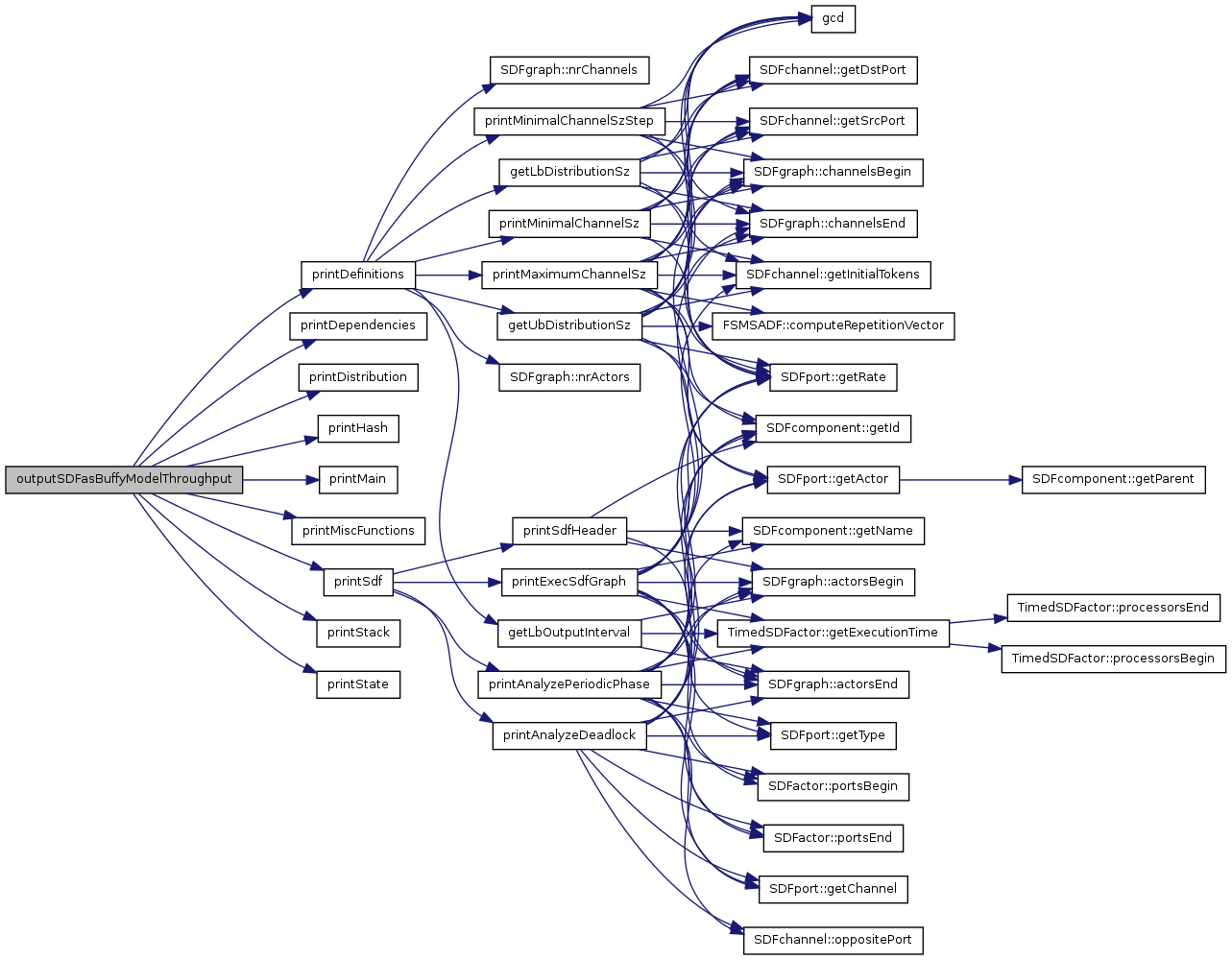

Here is the call graph for this function:

void outputSDFasStateSpaceThroughputModel	(	TimedSDFgraph *	g,
		ostream &	out,
		unsigned long long	stackSz,
		unsigned long long	hashSz
	)

outputSDFasStateSpaceThroughputModel () Output the SDF graph as a buffy model to find the maximal throughput for unconstrained buffer sizes and using auto-concurrency.

References FSMSADF::computeRepetitionVector(), findOutputActor(), SDFcomponent::getId(), SDFcomponent::getName(), outputActor, printDefinitions(), printHash(), printMain(), printMiscFunctions(), printSdf(), printStack(), and printState().

Referenced by printSDFG().

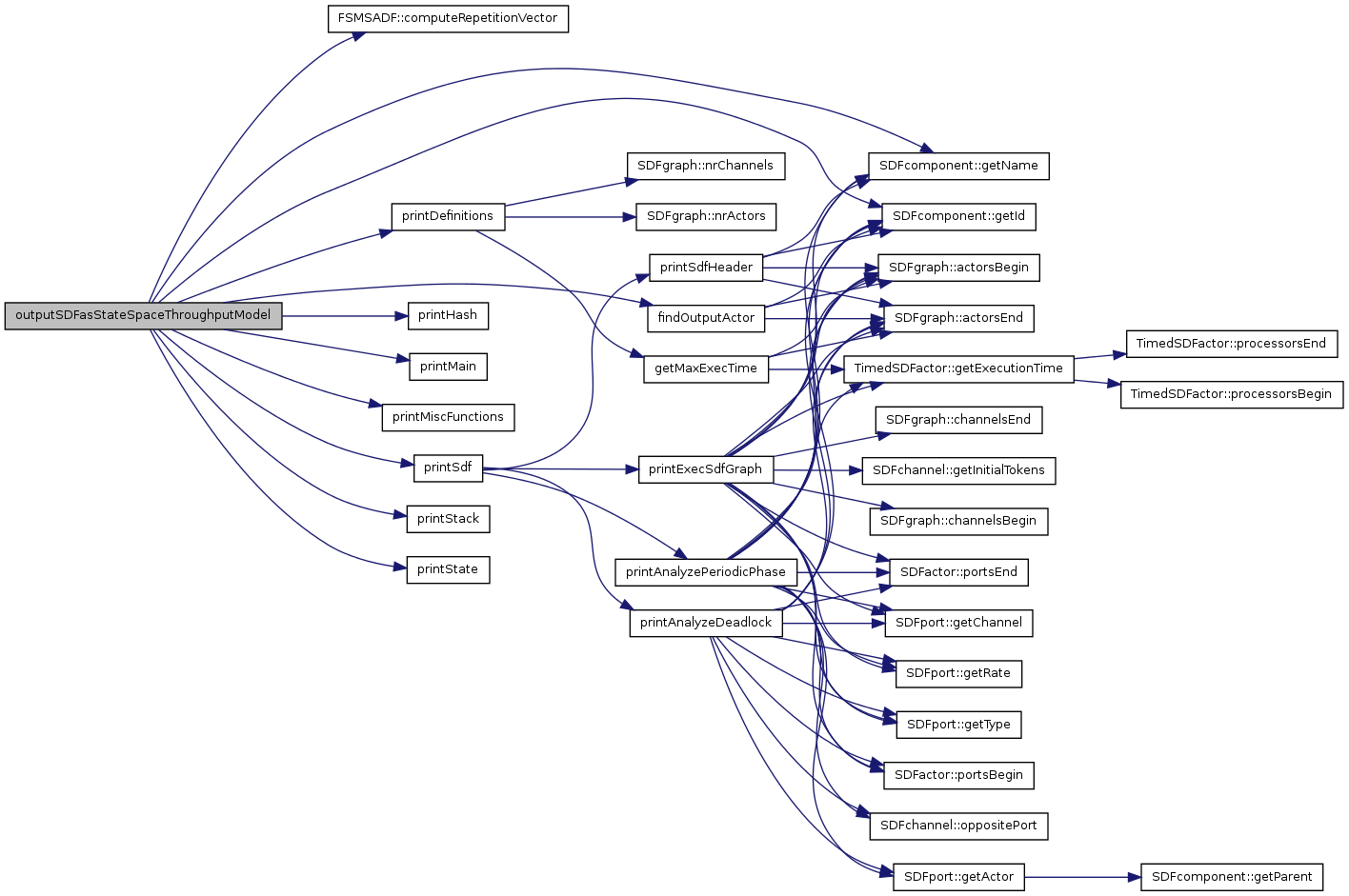

Here is the call graph for this function:
