sdf/tools/sdf3transform/sdf3transform.cc File Reference

#include "sdf3transform.h"
#include "../../sdf.h"

Include dependency graph for sdf/tools/sdf3transform/sdf3transform.cc:

Classes
struct	_CPair
struct	_Settings
Typedefs
typedef struct _CPair	CPair
typedef list< CPair >	CPairs
typedef CPairs::iterator	CPairsIter
typedef struct _Settings	Settings
Functions
void	helpMessage (ostream &out)
CPairs	parseSwitchArgument (CString arguments)
void	parseCommandLine (int argc, char **argv)
CNode *	loadApplicationGraphFromFile (CString &file, CString module)
void	initSettings (int argc, char **argv)
void	transformGraph (TimedSDFgraph *g, CPairs &transforms, ostream &out)
void	transformGraph (ostream &out)
int	main (int argc, char **argv)
Variables
Settings	settings

---

Typedef Documentation

typedef struct _CPair CPair

typedef list<CPair> CPairs

typedef CPairs::iterator CPairsIter

typedef struct _Settings Settings

Settings Struct to store program settings.

---

Function Documentation

void helpMessage

(

ostream &

out

)

helpMessage () Function prints help message for the tool.

References DOTTED_VERSION, and TOOL.

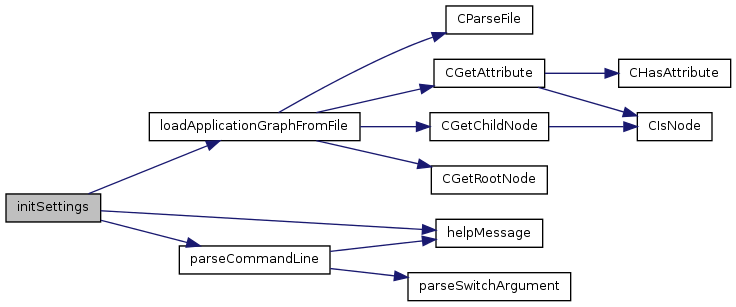

void initSettings	(	int	argc,
		char **	argv
	)

initSettings () The function initializes the program settings.

References helpMessage(), loadApplicationGraphFromFile(), MODULE, and parseCommandLine().

Here is the call graph for this function:

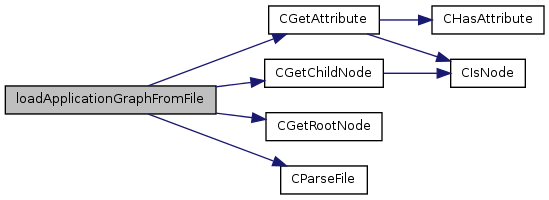

CNode* loadApplicationGraphFromFile	(	CString &	file,
		CString	module
	)

loadApplicationGraphFromFile () The function returns a pointer to an XML data structures contained in the supplied file that describes the SDFG.

References CGetAttribute(), CGetChildNode(), CGetRootNode(), and CParseFile().

Here is the call graph for this function:

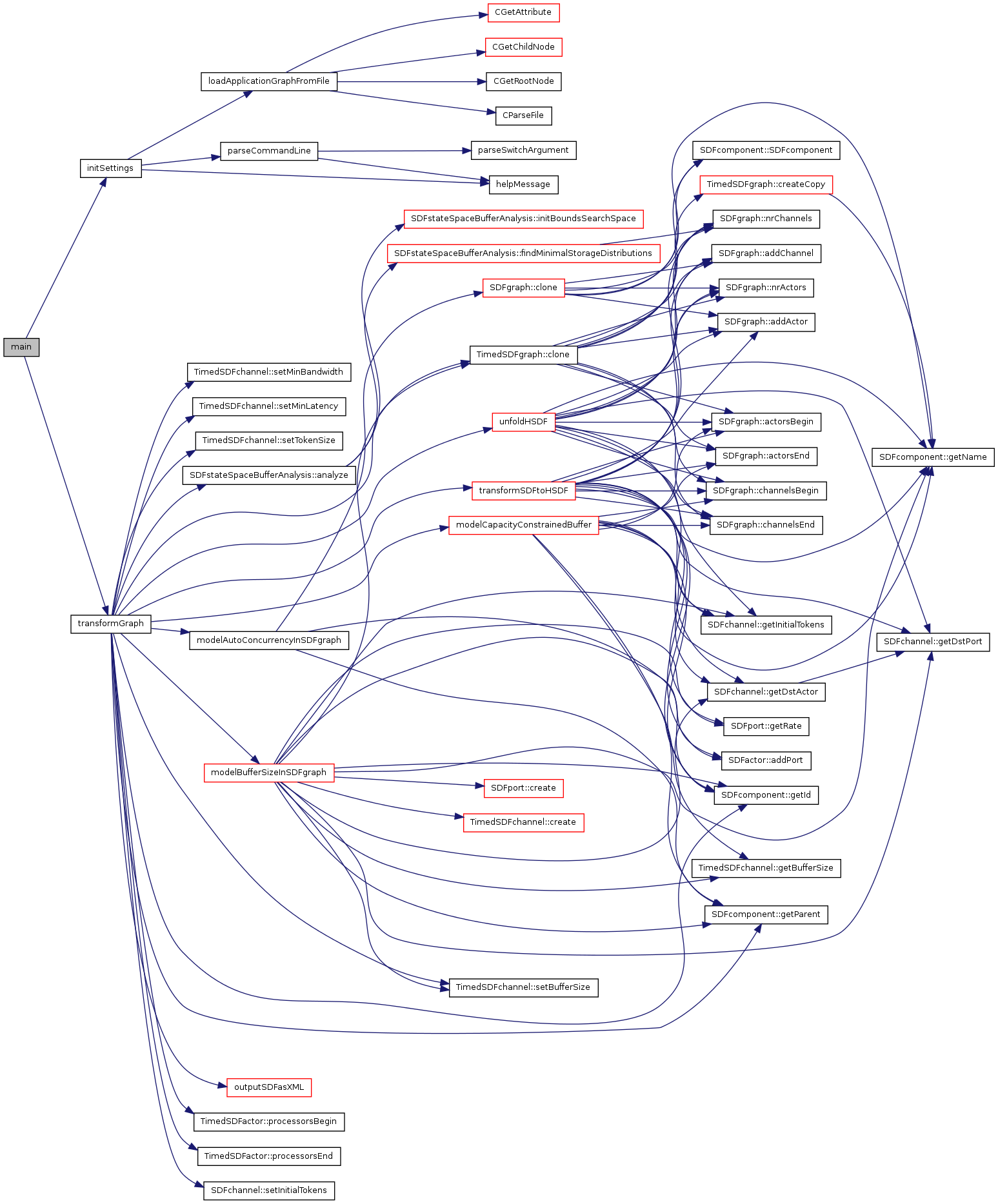

int main	(	int	argc,
		char **	argv
	)

main () It does none of the hard work, but it is very needed...

References initSettings(), MaxPlusAnalysis::out, Settings::outputFile, and transformGraph().

Here is the call graph for this function:

void parseCommandLine	(	int	argc,
		char **	argv
	)

parseCommandLine () The function parses the command line arguments and add info to the supplied settings structure.

References helpMessage(), Settings::outputFile, and parseSwitchArgument().

Here is the call graph for this function:

CPairs parseSwitchArgument

(

CString

arguments

)

parseSwitchArgument () The function parses the string 'arguments' into a sequence of (arg, value) pairs. The syntax as as follows:

pair := key(value) arg := pair,pair,...

Note: value may be a pair itself, but this is not expanded into a set of pairs (i.e. nested pairs are not supported).

References c, _CPair::key, and _CPair::value.

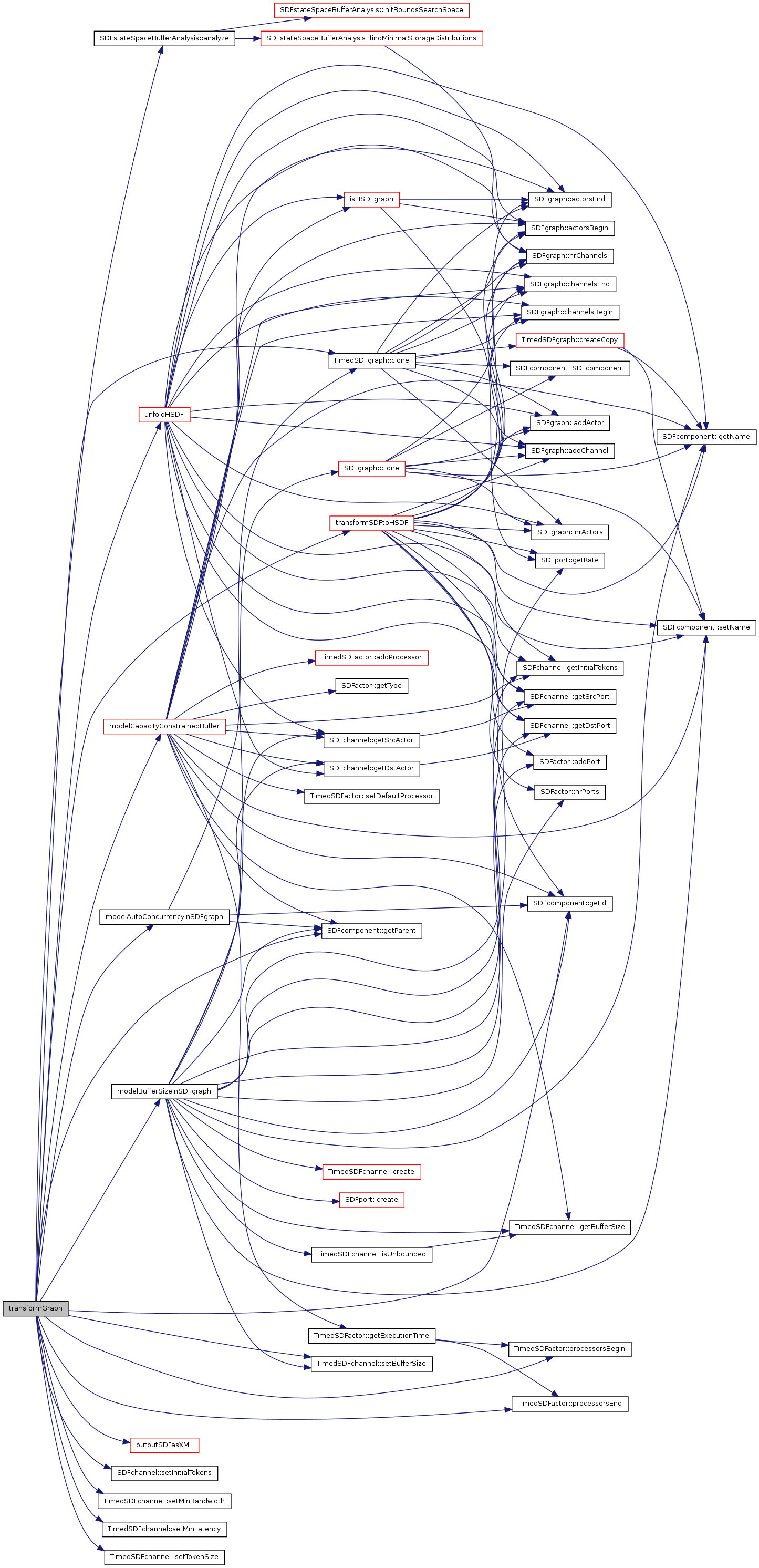

void transformGraph	(	TimedSDFgraph *	g,
		CPairs &	transforms,
		ostream &	out
	)

transformGraph () The function transforms the SDF graph and the resulting (H)SDF graph is outputted in XML format to the out stream.

References a, SDFstateSpaceBufferAnalysis::analyze(), c, TimedSDFgraph::clone(), component, _StorageDistributionSet::distributions, TimedSDFchannel::_BufferSize::dst, SDFcomponent::getId(), SDFcomponent::getParent(), _CPair::key, TimedSDFchannel::_BufferSize::mem, modelAutoConcurrencyInSDFgraph(), modelBufferSizeInSDFgraph(), modelCapacityConstrainedBuffer(), _StorageDistribution::next, _StorageDistributionSet::next, outputSDFasXML(), TimedSDFactor::processorsBegin(), TimedSDFactor::processorsEnd(), TimedSDFchannel::setBufferSize(), SDFchannel::setInitialTokens(), TimedSDFchannel::setMinBandwidth(), TimedSDFchannel::setMinLatency(), TimedSDFchannel::setTokenSize(), _StorageDistribution::sp, TimedSDFchannel::_BufferSize::src, TimedSDFactor::_Processor::stateSize, TimedSDFchannel::_BufferSize::sz, _StorageDistributionSet::thr, transformSDFtoHSDF(), unfoldHSDF(), and _CPair::value.

Referenced by main(), and transformGraph().

Here is the call graph for this function:

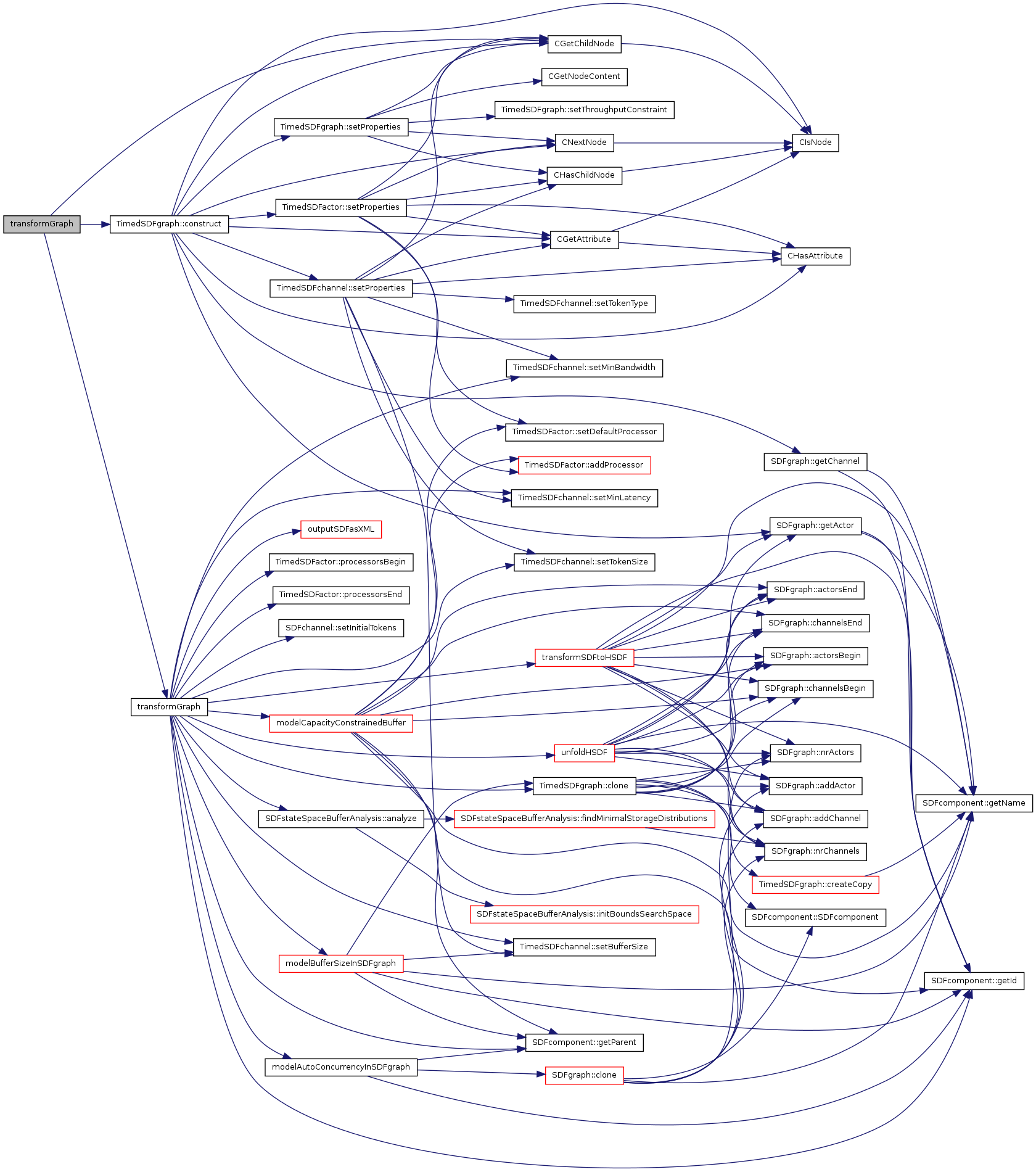

void transformGraph

(

ostream &

out

)

transformGraph () The function transforms the SDF graph.

References CGetChildNode(), TimedSDFgraph::construct(), and transformGraph().

Here is the call graph for this function:

---

Variable Documentation

Settings settings

settings Program settings.
