CSDFport Class Reference

#include <port.h>

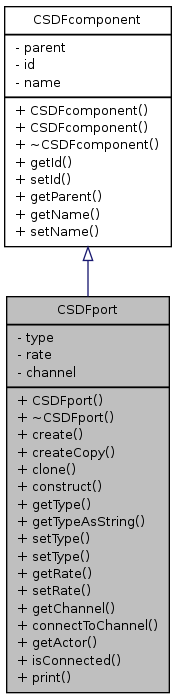

Inheritance diagram for CSDFport:
Inheritance graph
[legend]

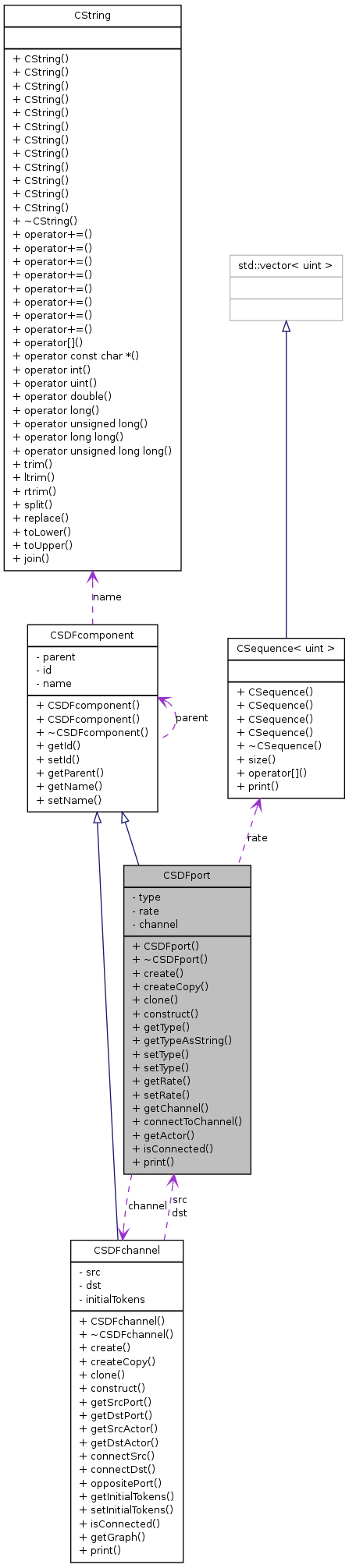

Collaboration diagram for CSDFport:
Collaboration graph
[legend]

List of all members.

Public Types

enum  CSDFportType { In, Out }

Public Member Functions

 CSDFport (CSDFcomponent &c)
virtual ~CSDFport ()
virtual CSDFport * create (CSDFcomponent &c) const
virtual CSDFport * createCopy (CSDFcomponent &c) const
virtual CSDFport * clone (CSDFcomponent &c) const
void construct (const CNodePtr portNode)
CSDFportType getType () const
CString getTypeAsString () const
void setType (const CSDFportType t)
void setType (const CString &t)
CSDFrate & getRate ()
void setRate (const CSDFrate &r)
CSDFchannel * getChannel () const
void connectToChannel (CSDFchannel *c)
CSDFactor * getActor () const
bool isConnected () const
ostream & print (ostream &out)

Private Attributes

CSDFportType type
CSDFrate rate
CSDFchannel * channel

Friends

ostream & operator<< (ostream &out, CSDFport &p)

Detailed Description

CSDFport Port on an CSDF actor.

Member Enumeration Documentation

enum CSDFport::CSDFportType
Enumerator:
In
Out

Constructor & Destructor Documentation

CSDFport::CSDFport ( CSDFcomponent &  c  )

CSDFport () Constructor.

Referenced by clone(), create(), and createCopy().

CSDFport::~CSDFport (  )  [virtual]

~CSDFport () Destructor.

Member Function Documentation

CSDFport * CSDFport::clone ( CSDFcomponent &  c  )  const [virtual]

clone () The function returns a pointer to a newly allocated CSDF port object. The properties of the port are also cloned. Note: the connection to the channel is lost. Cloning the channel restores this connection.

References CSDFport(), CSDFcomponent::getName(), getType(), rate, CSDFcomponent::setName(), setRate(), and setType().

Referenced by CSDFactor::clone(), and TimedCSDFactor::clone().

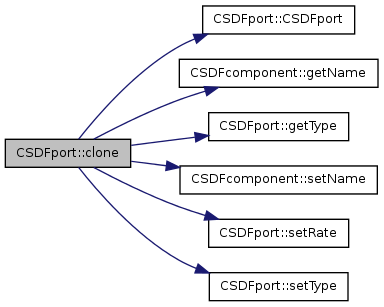

Here is the call graph for this function:

void CSDFport::connectToChannel ( CSDFchannel *  c  )

connectToChannel () The function connects the port to a channel. A connection can only be made if the port is not yet connected.

References channel, CSDFcomponent::getName(), CSDFcomponent::getParent(), and isConnected().

Referenced by CSDFchannel::connectDst(), and CSDFchannel::connectSrc().

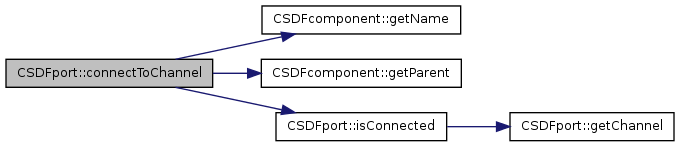

Here is the call graph for this function:

void CSDFport::construct ( const CNodePtr  portNode  )

construct () The function initializes all port properties based on the XML data.

References CGetAttribute(), CHasAttribute(), CSDFcomponent::setName(), setRate(), and setType().

Referenced by constructCSDFgraph(), and constructTimedCSDFgraphStructure().

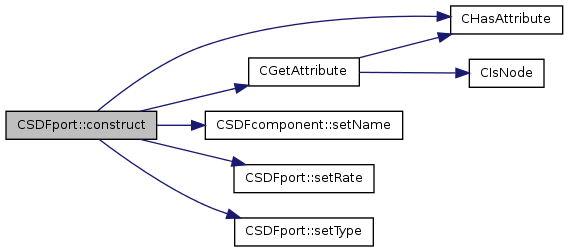

Here is the call graph for this function:

CSDFport * CSDFport::create ( CSDFcomponent &  c  )  const [virtual]

create () The function returns a pointer to a newly allocated CSDF port object.

References CSDFport().

Here is the call graph for this function:

CSDFport * CSDFport::createCopy ( CSDFcomponent &  c  )  const [virtual]

createCopy () The function returns a pointer to a newly allocated CSDF port object. The properties of the port are also copied.

References CSDFport(), CSDFcomponent::getName(), getType(), rate, CSDFcomponent::setName(), setRate(), and setType().

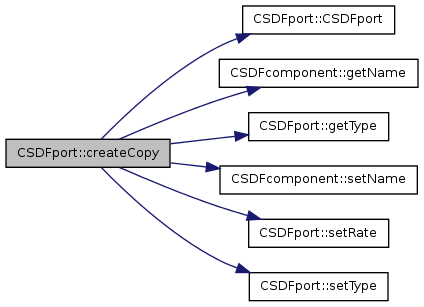

Here is the call graph for this function:

CSDFactor* CSDFport::getActor (  )  const [inline]

References CSDFcomponent::getParent().

Referenced by CSDFgraph::calcFractionsConnectedActors().

Here is the call graph for this function:

CSDFchannel* CSDFport::getChannel (  )  const [inline]

References channel.

Referenced by CSDFstateSpaceThroughputAnalysis::TransitionSystem::actorReadyToFire(), CSDFstateSpaceBufferAnalysis::TransitionSystem::actorReadyToFire(), CSDFgraph::calcFractionsConnectedActors(), CSDFstateSpaceThroughputAnalysis::TransitionSystem::endActorFiring(), CSDFstateSpaceBufferAnalysis::TransitionSystem::endActorFiring(), CSDFstateSpaceBufferAnalysis::TransitionSystem::findCausalDependencies(), getAdjacentActors(), isConnected(), CSDFstateSpaceThroughputAnalysis::TransitionSystem::startActorFiring(), and CSDFstateSpaceBufferAnalysis::TransitionSystem::startActorFiring().

CSDFrate& CSDFport::getRate (  )  [inline]

References rate.

Referenced by CSDFstateSpaceThroughputAnalysis::TransitionSystem::actorReadyToFire(), CSDFstateSpaceBufferAnalysis::TransitionSystem::actorReadyToFire(), CSDFstateSpaceBufferAnalysis::TransitionSystem::analyzeDeadlock(), CSDFgraph::calcFractionsConnectedActors(), computeGraphPeriod(), constructCSDFgraph(), createCSDFnode(), distributeRateOverPeriod(), CSDFstateSpaceThroughputAnalysis::TransitionSystem::endActorFiring(), CSDFstateSpaceBufferAnalysis::TransitionSystem::endActorFiring(), CSDFstateSpaceBufferAnalysis::TransitionSystem::findCausalDependencies(), getLbDistributionSz(), CSDFgraph::getRepetitionVector(), CSDFstateSpaceBufferAnalysis::initMinimalChannelSz(), CSDFstateSpaceBufferAnalysis::initMinimalChannelSzStep(), print(), printDefinitions(), printMinimalChannelSz(), printMinimalChannelSzStep(), CSDFstateSpaceThroughputAnalysis::TransitionSystem::startActorFiring(), and CSDFstateSpaceBufferAnalysis::TransitionSystem::startActorFiring().

CSDFportType CSDFport::getType (  )  const [inline]

References type.

Referenced by CSDFstateSpaceThroughputAnalysis::TransitionSystem::actorReadyToFire(), CSDFstateSpaceBufferAnalysis::TransitionSystem::actorReadyToFire(), clone(), CSDFchannel::connectDst(), CSDFchannel::connectSrc(), createCopy(), CSDFstateSpaceThroughputAnalysis::TransitionSystem::endActorFiring(), CSDFstateSpaceBufferAnalysis::TransitionSystem::endActorFiring(), CSDFstateSpaceBufferAnalysis::TransitionSystem::findCausalDependencies(), getAdjacentActors(), CSDFstateSpaceThroughputAnalysis::TransitionSystem::startActorFiring(), and CSDFstateSpaceBufferAnalysis::TransitionSystem::startActorFiring().

CString CSDFport::getTypeAsString (  )  const [inline]

References In, and type.

Referenced by createCSDFnode(), and print().

bool CSDFport::isConnected (  )  const

isConnected () The function return true if the port is connected to a channel, else it returns false.

References getChannel().

Referenced by connectToChannel(), CSDFactor::isConnected(), and print().

Here is the call graph for this function:

ostream & CSDFport::print ( ostream &  out  )

print () Print the port to the supplied output stream.

References CSDFcomponent::getId(), CSDFcomponent::getName(), getRate(), getTypeAsString(), and isConnected().

Referenced by CSDFactor::print(), and TimedCSDFactor::print().

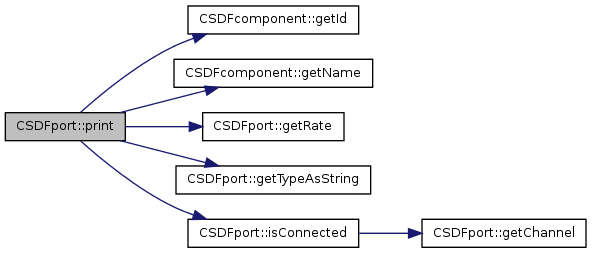

Here is the call graph for this function:

void CSDFport::setRate ( const CSDFrate &  r  )  [inline]

References rate.

Referenced by clone(), construct(), createCopy(), CSDFactor::createPort(), and distributeRateOverPeriod().

void CSDFport::setType ( const CSDFportType  t  )  [inline]

References type.

Referenced by clone(), construct(), createCopy(), and CSDFactor::createPort().

void CSDFport::setType ( const CString &  t  )  [inline]

References type.

Friends And Related Function Documentation

ostream& operator<< ( ostream &  out,
CSDFport &  p
) [friend]

Member Data Documentation

CSDFchannel* CSDFport::channel [private]

Referenced by connectToChannel(), and getChannel().

CSDFrate CSDFport::rate [private]

Referenced by clone(), createCopy(), getRate(), and setRate().

CSDFportType CSDFport::type [private]

Referenced by getType(), getTypeAsString(), and setType().
