FSMSADF::Port Class Reference

#include <port.h>

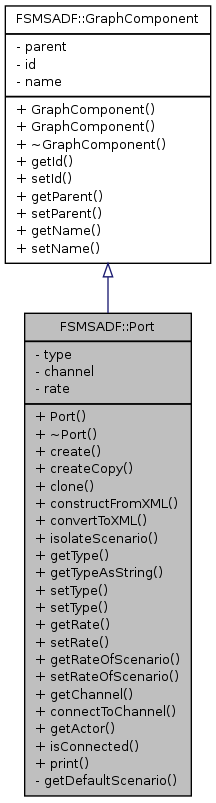

Inheritance diagram for FSMSADF::Port:
Inheritance graph
[legend]

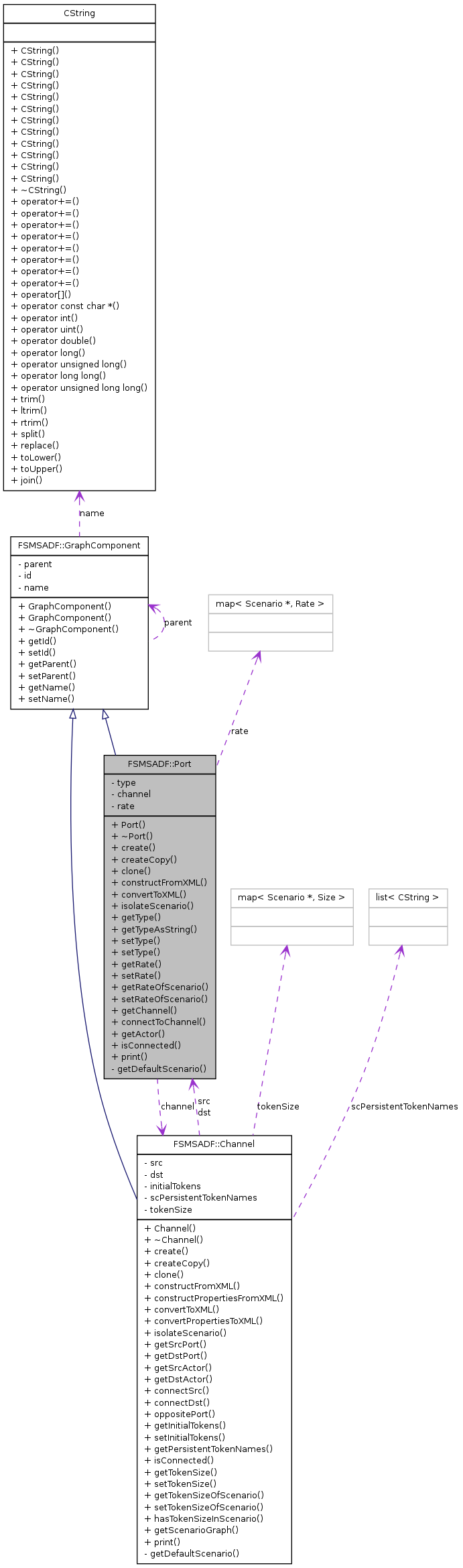

Collaboration diagram for FSMSADF::Port:
Collaboration graph
[legend]

List of all members.

Public Types

enum  PortType { In, Out, Undef }

Public Member Functions

 Port (GraphComponent c)
 ~Port ()
Port * create (GraphComponent c) const
Port * createCopy (GraphComponent c) const
Port * clone (GraphComponent c) const
void constructFromXML (const CNodePtr portNode)
void convertToXML (const CNodePtr portNode)
void isolateScenario (Scenario *s)
PortType getType () const
CString getTypeAsString () const
void setType (const PortType t)
void setType (const CString &t)
const map< Scenario *, Rate > & getRate () const
void setRate (const map< Scenario *, Rate > &r)
Rate getRateOfScenario (Scenario *s) const
void setRateOfScenario (Scenario *s, const Rate r)
Channel * getChannel () const
void connectToChannel (Channel *c)
Actor * getActor () const
bool isConnected () const
ostream & print (ostream &out)

Private Member Functions

Scenario * getDefaultScenario () const

Private Attributes

PortType type
Channel * channel
map< Scenario *, Rate > rate

Friends

ostream & operator<< (ostream &out, Port &p)

Detailed Description

Port Port on an actor.

Member Enumeration Documentation

enum FSMSADF::Port::PortType
Enumerator:
In
Out
Undef

Constructor & Destructor Documentation

FSMSADF::Port::Port ( GraphComponent  c  )

Port () Constructor.

References getDefaultScenario(), and setRateOfScenario().

Referenced by create().

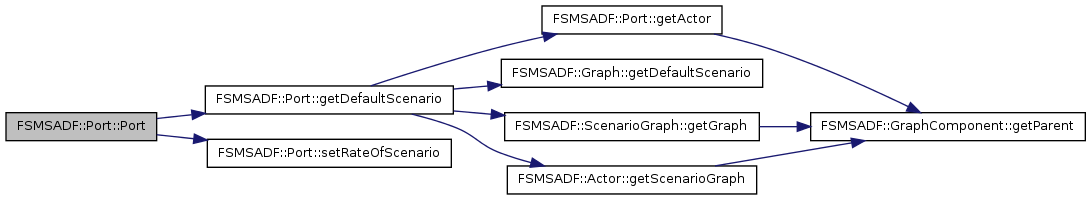

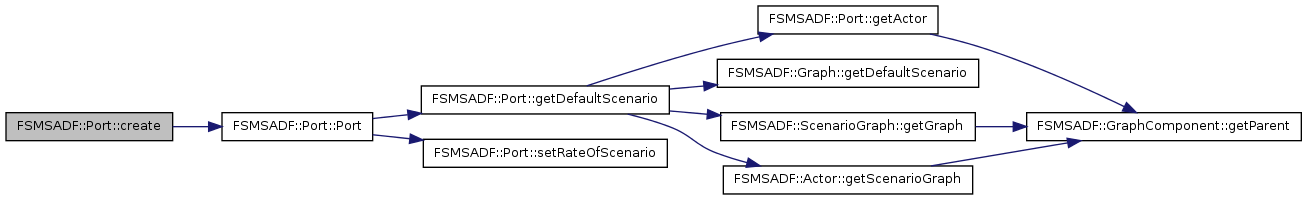

Here is the call graph for this function:

FSMSADF::Port::~Port (  )

~Port () Destructor.

Member Function Documentation

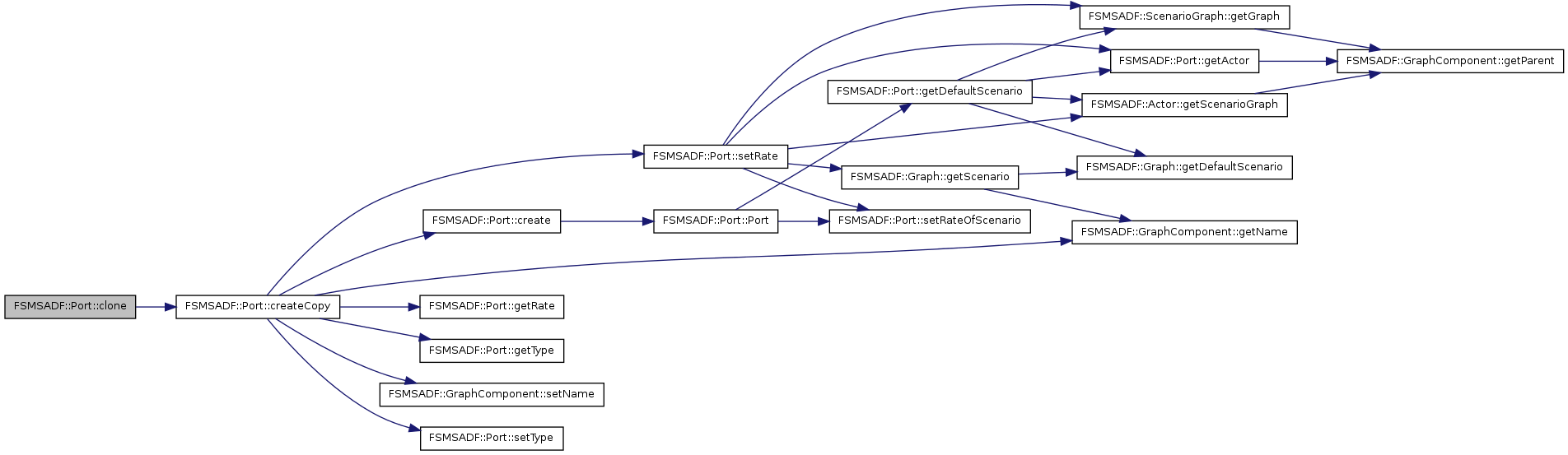

Port * FSMSADF::Port::clone ( GraphComponent  c  )  const

clone () The function returns a pointer to a newly allocated port object. The properties of the port are also cloned. Note: the connection to the channel is lost. Cloning the channel restores this connection.

References createCopy().

Referenced by FSMSADF::Actor::clone().

Here is the call graph for this function:

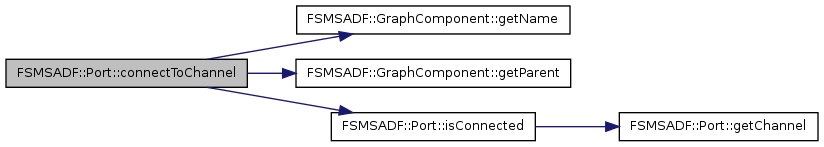

void FSMSADF::Port::connectToChannel ( Channel *  c  )

connectToChannel () The function connects the port to a channel. A connection can only be made if the port is not yet connected.

References channel, FSMSADF::GraphComponent::getName(), FSMSADF::GraphComponent::getParent(), and isConnected().

Referenced by FSMSADF::Channel::connectDst(), and FSMSADF::Channel::connectSrc().

Here is the call graph for this function:

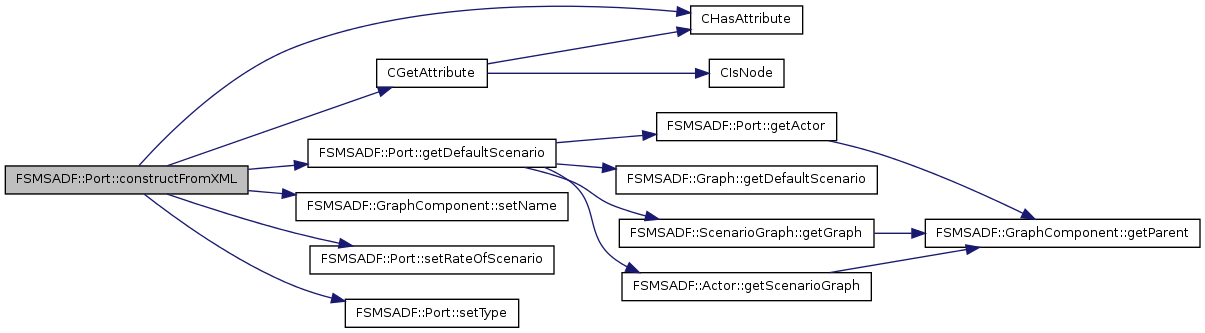

void FSMSADF::Port::constructFromXML ( const CNodePtr  portNode  )

constructFromXML () The function initializes all port properties based on the XML data.

References CGetAttribute(), CHasAttribute(), getDefaultScenario(), FSMSADF::GraphComponent::setName(), setRateOfScenario(), and setType().

Referenced by FSMSADF::Actor::constructFromXML().

Here is the call graph for this function:

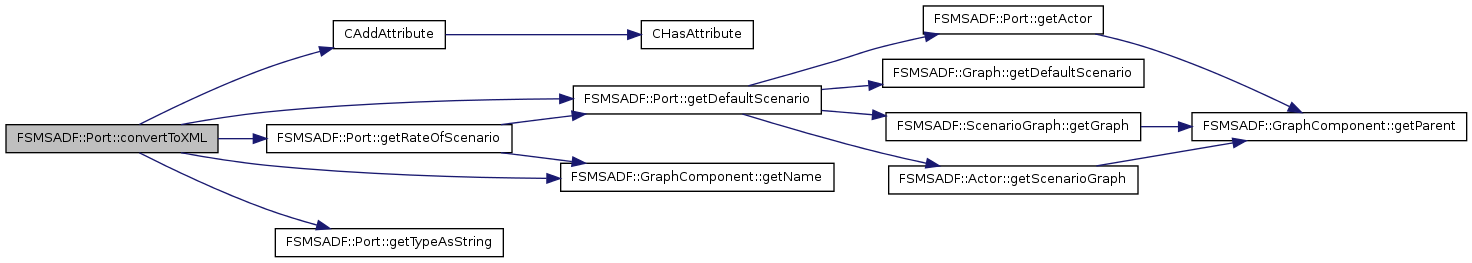

void FSMSADF::Port::convertToXML ( const CNodePtr  portNode  )

convertToXML () The function converts all port properties to XML data.

References CAddAttribute(), getDefaultScenario(), FSMSADF::GraphComponent::getName(), getRateOfScenario(), and getTypeAsString().

Here is the call graph for this function:

Port * FSMSADF::Port::create ( GraphComponent  c  )  const

create () The function returns a pointer to a newly allocated port object.

References Port().

Referenced by createCopy().

Here is the call graph for this function:

Port * FSMSADF::Port::createCopy ( GraphComponent  c  )  const

createCopy () The function returns a pointer to a newly allocated SDF port object. The properties of the port are also copied.

References create(), FSMSADF::GraphComponent::getName(), getRate(), getType(), FSMSADF::GraphComponent::setName(), setRate(), and setType().

Referenced by clone().

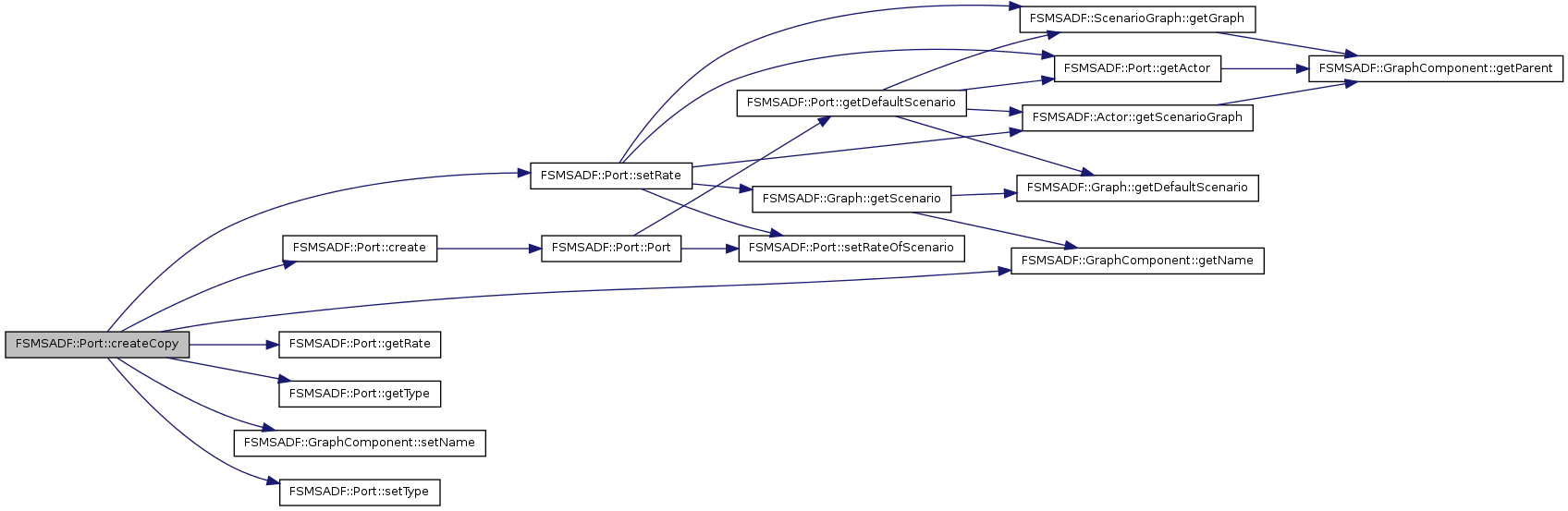

Here is the call graph for this function:

Actor* FSMSADF::Port::getActor (  )  const [inline]

References FSMSADF::GraphComponent::getParent().

Referenced by FSMSADF::calcFractionsConnectedActors(), FSMSADF::RandomGraph::createScenarioGraph(), getDefaultScenario(), and setRate().

Here is the call graph for this function:

Channel* FSMSADF::Port::getChannel (  )  const [inline]

References channel.

Referenced by FSMSADF::MPExplore::State::actorEnabled(), FSMSADF::calcFractionsConnectedActors(), FSMSADF::MPExploreBindingAware::State::consume(), FSMSADF::MPExplore::State::consume(), FSMSADF::RandomGraph::dfsStronglyConnected(), FSMSADF::RandomGraph::findCycles(), FSMSADF::RandomGraph::getChannelsBetweenActors(), isConnected(), FSMSADF::MPExploreBindingAware::State::produce(), and FSMSADF::MPExplore::State::produce().

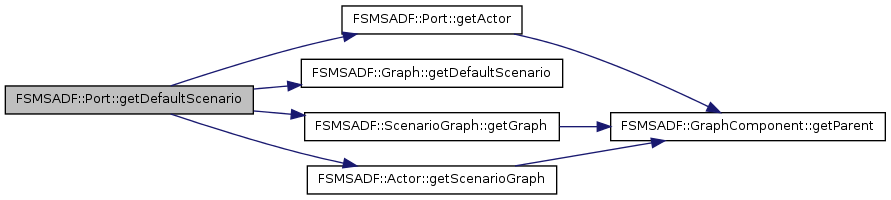

Scenario * FSMSADF::Port::getDefaultScenario (  )  const [private]

getDefaultScenario () The function returns a pointer to the default scenario.

References getActor(), FSMSADF::Graph::getDefaultScenario(), FSMSADF::ScenarioGraph::getGraph(), and FSMSADF::Actor::getScenarioGraph().

Referenced by constructFromXML(), convertToXML(), getRateOfScenario(), isolateScenario(), and Port().

Here is the call graph for this function:

const map<Scenario*,Rate>& FSMSADF::Port::getRate (  )  const [inline]

References rate.

Referenced by FSMSADF::Actor::convertPropertiesToXML(), createCopy(), and FSMSADF::GraphConversion::ensureStronglyBounded().

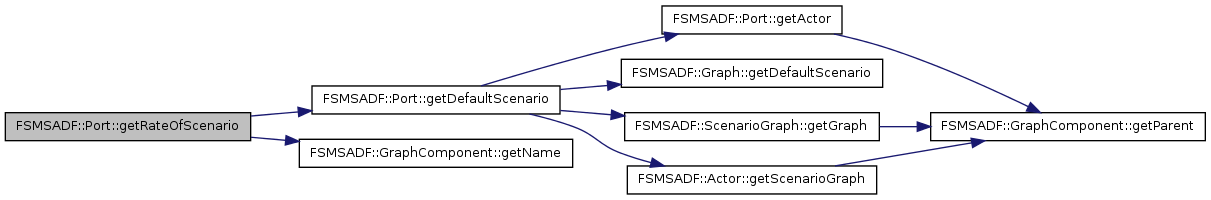

Rate FSMSADF::Port::getRateOfScenario ( Scenario *  s  )  const

getRateOfScenario() The function returns the rate of the port in the given scenario. When no specific rate is specified for the scenario, the default scenario is used.

References getDefaultScenario(), FSMSADF::GraphComponent::getName(), and rate.

Referenced by FSMSADF::MPExplore::State::actorEnabled(), FSMSADF::calcFractionsConnectedActors(), FSMSADF::MPExploreBindingAware::State::consume(), FSMSADF::MPExplore::State::consume(), FSMSADF::Actor::convertPropertiesToXML(), convertToXML(), FSMSADF::BindingAwareGraph::createMappedChannelToConnectionNSoC(), FSMSADF::BindingAwareGraph::createMappedChannelToTileNSoC(), FSMSADF::MemoryDimAlgo::estimateStorageDist(), FSMSADF::ScenarioGraph::extractSDFgraph(), isolateScenario(), FSMSADF::PrecedenceGraph::PrecedenceGraph(), FSMSADF::OutputHTML::printScenario(), FSMSADF::MPExploreBindingAware::State::produce(), FSMSADF::MPExplore::State::produce(), FSMSADF::MPExploreBindingAware::SGraph::SGraph(), and FSMSADF::MPExplore::SGraph::SGraph().

Here is the call graph for this function:

PortType FSMSADF::Port::getType (  )  const [inline]

References type.

Referenced by FSMSADF::MPExplore::State::actorEnabled(), FSMSADF::Channel::connectDst(), FSMSADF::Channel::connectSrc(), createCopy(), FSMSADF::RandomGraph::dfsStronglyConnected(), FSMSADF::RandomGraph::findCycles(), FSMSADF::MPExplore::SGraph::fire(), and FSMSADF::RandomGraph::getChannelsBetweenActors().

CString FSMSADF::Port::getTypeAsString (  )  const

getTypeAsString() The function returns a string which specifies the port type.

References In, Out, and type.

Referenced by FSMSADF::Channel::connectDst(), FSMSADF::Channel::connectSrc(), convertToXML(), and print().

bool FSMSADF::Port::isConnected (  )  const

isConnected () The function return true if the port is connected to a channel, else it returns false.

References getChannel().

Referenced by connectToChannel(), FSMSADF::Actor::isConnected(), and print().

Here is the call graph for this function:

void FSMSADF::Port::isolateScenario ( Scenario *  s  )

isolateScenario() The function removes all scenario except scenario s from the actor. The rate of this scenario is set as the rate of the default scenario on this graph.

References getDefaultScenario(), getRateOfScenario(), rate, and setRateOfScenario().

Referenced by FSMSADF::Actor::isolateScenario().

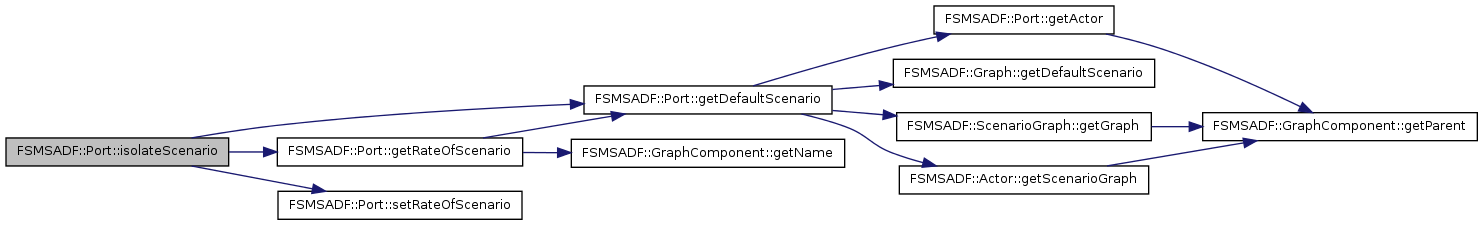

Here is the call graph for this function:

ostream & FSMSADF::Port::print ( ostream &  out  )

print () Print the port to the supplied output stream.

References FSMSADF::GraphComponent::getId(), FSMSADF::GraphComponent::getName(), getTypeAsString(), isConnected(), and rate.

Referenced by FSMSADF::Actor::print().

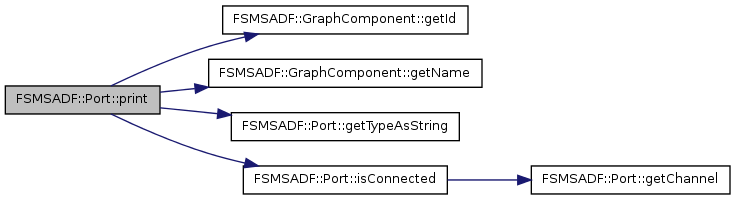

Here is the call graph for this function:

void FSMSADF::Port::setRate ( const map< Scenario *, Rate > &  r  )

setRate () The function sets the port rates of all scenarios.

References getActor(), FSMSADF::ScenarioGraph::getGraph(), FSMSADF::Graph::getScenario(), FSMSADF::Actor::getScenarioGraph(), rate, and setRateOfScenario().

Referenced by createCopy(), and FSMSADF::GraphConversion::ensureStronglyBounded().

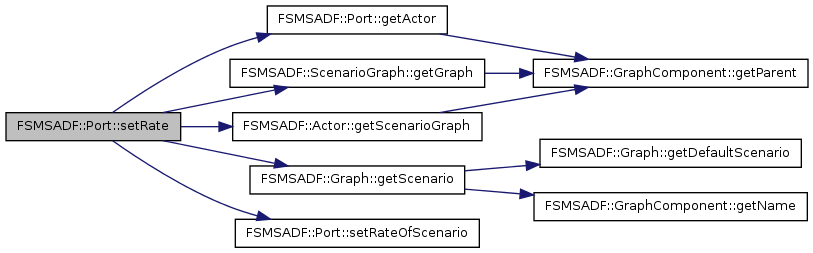

Here is the call graph for this function:

void FSMSADF::Port::setRateOfScenario ( Scenario *  s,
const Rate  r
)

setRateOfScenario() The function sets the rate of the port in the given scenario.

References rate.

Referenced by FSMSADF::RandomGraph::assignRatesToPorts(), constructFromXML(), FSMSADF::Actor::constructPropertiesFromXML(), FSMSADF::BindingAwareGraph::createMappedActorNSoC(), FSMSADF::BindingAwareGraph::createMappedChannelToConnectionNSoC(), FSMSADF::BindingAwareGraph::createMappedChannelToTileNSoC(), FSMSADF::GraphConversion::ensureStronglyBounded(), isolateScenario(), Port(), and setRate().

void FSMSADF::Port::setType ( const CString &  t  )

setType() The function sets the port type based on the string value.

References type.

void FSMSADF::Port::setType ( const PortType  t  )  [inline]

References type.

Referenced by constructFromXML(), createCopy(), and FSMSADF::Actor::createPort().

Friends And Related Function Documentation

ostream& operator<< ( ostream &  out,
Port &  p
) [friend]

Member Data Documentation

Channel* FSMSADF::Port::channel [private]

Referenced by connectToChannel(), and getChannel().

map<Scenario*,Rate> FSMSADF::Port::rate [private]

Referenced by getRate(), getRateOfScenario(), isolateScenario(), print(), setRate(), and setRateOfScenario().

PortType FSMSADF::Port::type [private]

Referenced by getType(), getTypeAsString(), and setType().
