Tile Class Reference

#include <tile.h>

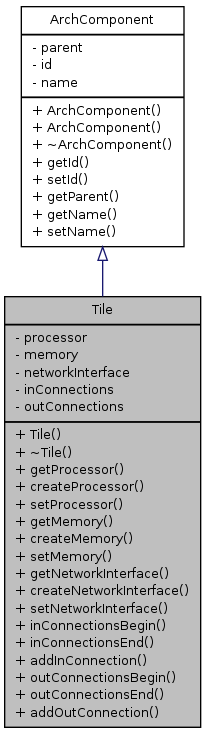

Inheritance diagram for Tile:

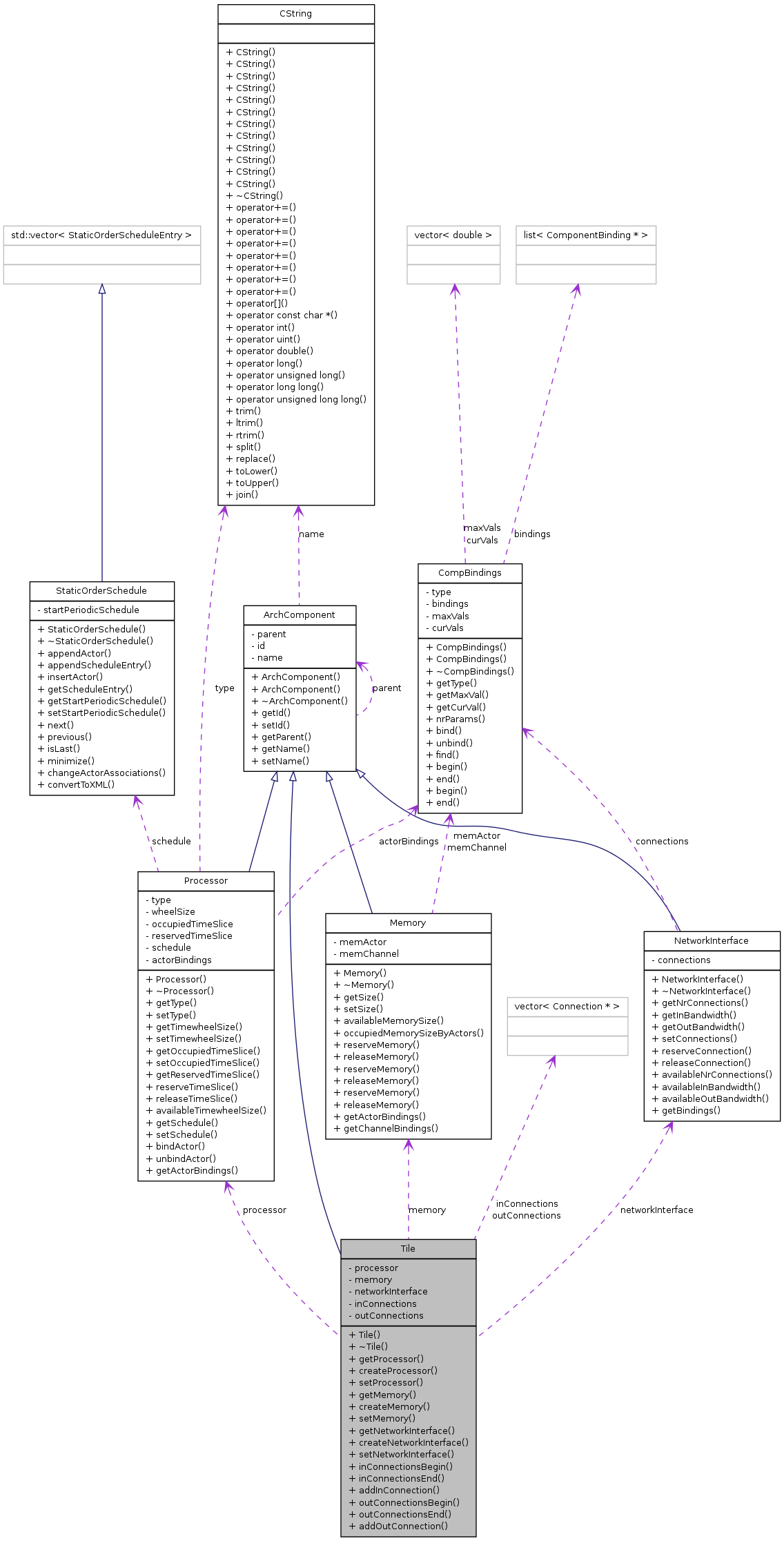

Collaboration diagram for Tile:

List of all members.

Public Member Functions
	Tile (ArchComponent &c)
virtual	~Tile ()
Processor *	getProcessor () const
Processor *	createProcessor (const CString &name)
void	setProcessor (Processor *p)
Memory *	getMemory () const
Memory *	createMemory (const CString &name)
void	setMemory (Memory *m)
NetworkInterface *	getNetworkInterface () const
NetworkInterface *	createNetworkInterface (const CString &name)
void	setNetworkInterface (NetworkInterface *n)
ConnectionsIter	inConnectionsBegin ()
ConnectionsIter	inConnectionsEnd ()
void	addInConnection (Connection *c)
ConnectionsIter	outConnectionsBegin ()
ConnectionsIter	outConnectionsEnd ()
void	addOutConnection (Connection *c)
Private Attributes
Processor *	processor
Memory *	memory
NetworkInterface *	networkInterface
Connections	inConnections
Connections	outConnections

---

Detailed Description

Tile Container for tile.

---

Constructor & Destructor Documentation

Tile::Tile

(

ArchComponent &

c

)

Tile () Constructor.

References memory, networkInterface, and processor.

Tile::~Tile

(

)

[virtual]

~Tile () Destructor.

References memory, networkInterface, and processor.

---

Member Function Documentation

void Tile::addInConnection

(

Connection *

c

)

addInConnection () Add an incoming connection to the tile.

References inConnections.

Referenced by constructPlatformGraph().

void Tile::addOutConnection

(

Connection *

c

)

addOutConnection () Add an outgoing connection to the tile.

References outConnections.

Referenced by constructPlatformGraph().

Memory * Tile::createMemory

(

const CString &

name

)

createMemory () Construct a new memory and add it to the tile. A pointer to the memory is returned.

References ArchComponent::ArchComponent(), component, and memory.

Referenced by constructPlatformGraph().

Here is the call graph for this function:

NetworkInterface * Tile::createNetworkInterface

(

const CString &

name

)

createNetworkInterface () Construct a new network interface and add it to the tile. A pointer to the network interface is returned.

References ArchComponent::ArchComponent(), component, and networkInterface.

Referenced by constructPlatformGraph().

Here is the call graph for this function:

Processor * Tile::createProcessor

(

const CString &

name

)

createProcessor () Construct a new processor and add it to the tile. A pointer to the processor is returned.

References ArchComponent::ArchComponent(), component, and processor.

Referenced by constructPlatformGraph().

Here is the call graph for this function:

Memory* Tile::getMemory

(

)

const [inline]

References memory.

Referenced by LoadBalanceBinding::allocateConnectionResources(), LoadBalanceBinding::allocateResources(), SDFconvertToHTML::convertPlatformGraph(), SDFconvertToHTML::convertPlatformMapping(), SDFconvertToHTML::convertPlatformUsage(), createMappingNode(), createTileNode(), createTileUsageNode(), outputSystemUsage(), LoadBalanceBinding::releaseConnectionResources(), LoadBalanceBinding::releaseResources(), setMappingTile(), setUsagePlatformGraph(), LoadBalanceBinding::sortTilesOnLoad(), and LoadBalanceBinding::updateStorageSpaceAllocation().

NetworkInterface* Tile::getNetworkInterface

(

)

const [inline]

References networkInterface.

Referenced by LoadBalanceBinding::allocateConnectionResources(), LoadBalanceBinding::allocateResources(), LoadBalanceBinding::changeBandwidthAllocation(), SDFconvertToHTML::convertPlatformGraph(), SDFconvertToHTML::convertPlatformMapping(), SDFconvertToHTML::convertPlatformUsage(), createMappingNode(), createTileNode(), createTileUsageNode(), outputSystemUsage(), LoadBalanceBinding::releaseConnectionResources(), setMappingTile(), setUsagePlatformGraph(), and LoadBalanceBinding::sortTilesOnLoad().

Processor* Tile::getProcessor

(

)

const [inline]

References processor.

Referenced by LoadBalanceBinding::actorLoadOnTile(), LoadBalanceBinding::allocateResources(), LoadBalanceBinding::changeSlotAllocation(), SDFstateSpaceTraceInterconnectCommunication::TransitionSystem::computeScheduleExtensions(), LoadBalanceBinding::constructStaticOrderSchedules(), SDFconvertToHTML::convertPlatformGraph(), SDFconvertToHTML::convertPlatformMapping(), SDFconvertToHTML::convertPlatformUsage(), BindingAwareSDFG::createMappedActorMPFlow(), BindingAwareSDFG::createMappedActorNSoC(), BindingAwareSDFG::createMappedChannelToConnectionMPFlow(), BindingAwareSDFG::createMappedChannelToConnectionNSoC(), createMappingNode(), createTileNode(), createTileUsageNode(), BindingAwareSDFG::extractActorMapping(), Binding::minimizeStaticOrderSchedules(), LoadBalanceBinding::minimizeTimeSlices(), LoadBalanceBinding::moveActorBinding(), LoadBalanceBinding::optimizeTimeSlices(), SDFconvertToHTML::outputPlatformMappingAsDot(), outputSystemUsage(), LoadBalanceBinding::reconstructStaticOrderSchedules(), LoadBalanceBinding::releaseResources(), LoadBalanceBinding::releaseTimeSlices(), LoadBalanceBinding::reserveTimeSlices(), setMappingTile(), setUsagePlatformGraph(), LoadBalanceBinding::sortTilesOnCommunicationOverhead(), LoadBalanceBinding::sortTilesOnLoad(), SDFstateSpaceTraceInterconnectCommunication::TransitionSystem::traceMessagesPeriodic(), and SDFstateSpaceTraceInterconnectCommunication::TransitionSystem::traceMessagesTransient().

ConnectionsIter Tile::inConnectionsBegin

(

)

[inline]

References inConnections.

ConnectionsIter Tile::inConnectionsEnd

(

)

[inline]

References inConnections.

ConnectionsIter Tile::outConnectionsBegin

(

)

[inline]

References outConnections.

Referenced by PlatformGraph::getConnection(), and PlatformGraph::getConnections().

ConnectionsIter Tile::outConnectionsEnd

(

)

[inline]

References outConnections.

Referenced by PlatformGraph::getConnection(), and PlatformGraph::getConnections().

void Tile::setMemory

(

Memory *

m

)

[inline]

References memory.

void Tile::setNetworkInterface

(

NetworkInterface *

n

)

[inline]

References networkInterface.

void Tile::setProcessor

(

Processor *

p

)

[inline]

References processor.

---

Member Data Documentation

Connections Tile::inConnections [private]

Referenced by addInConnection(), inConnectionsBegin(), and inConnectionsEnd().

Memory* Tile::memory [private]

Referenced by createMemory(), getMemory(), setMemory(), Tile(), and ~Tile().

NetworkInterface* Tile::networkInterface [private]

Referenced by createNetworkInterface(), getNetworkInterface(), setNetworkInterface(), Tile(), and ~Tile().

Connections Tile::outConnections [private]

Referenced by addOutConnection(), outConnectionsBegin(), and outConnectionsEnd().

Processor* Tile::processor [private]

Referenced by createProcessor(), getProcessor(), setProcessor(), Tile(), and ~Tile().

---
