#include <memory.h>

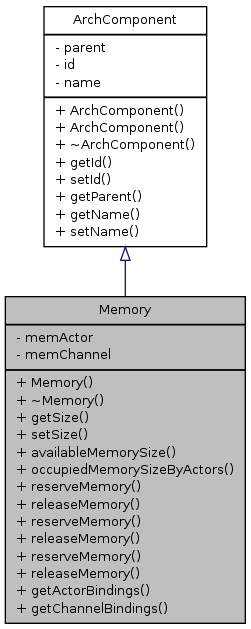

Inheritance diagram for Memory:

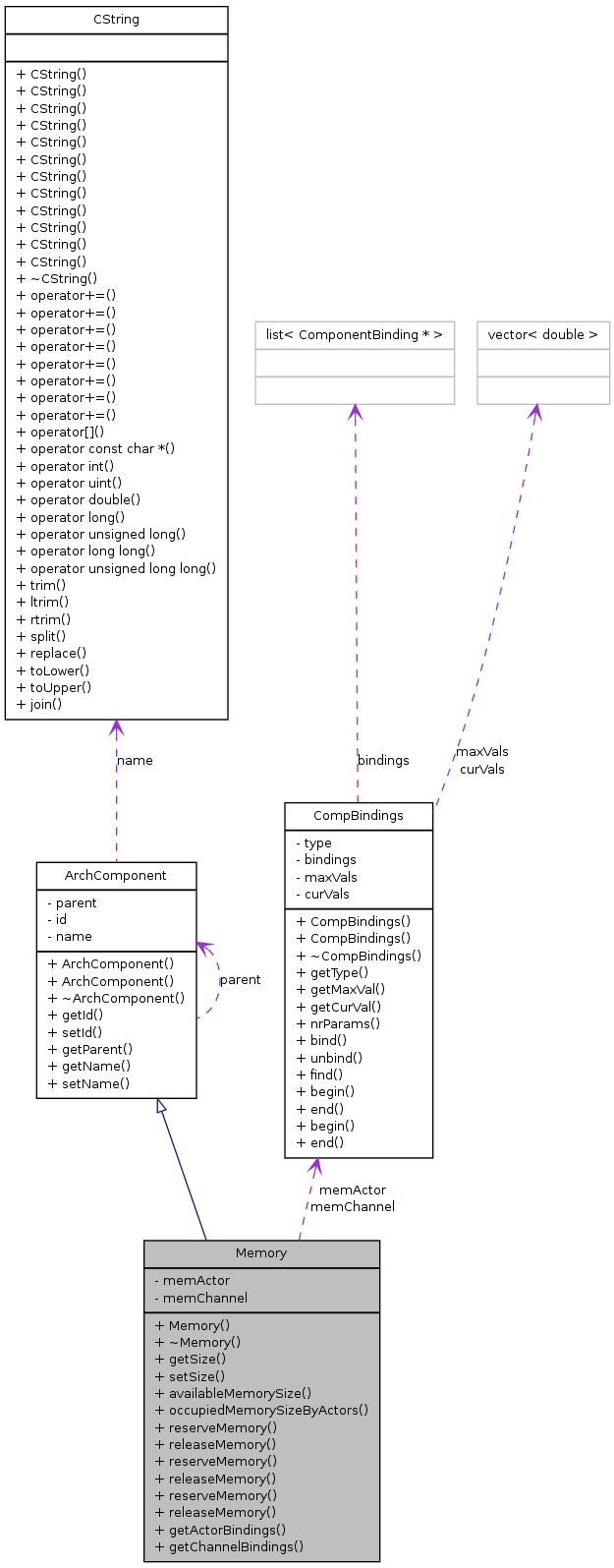

Collaboration diagram for Memory:

Public Member Functions
	Memory (ArchComponent &c)
virtual	~Memory ()
CSize	getSize () const
void	setSize (const CSize sz)
CSize	availableMemorySize () const
CSize	occupiedMemorySizeByActors () const
bool	reserveMemory (SDFactor *a, CSize sz)
bool	releaseMemory (SDFactor *a)
bool	reserveMemory (SDFchannel *c, CSize sz)
bool	releaseMemory (SDFchannel *c)
bool	reserveMemory (CSize sz)
bool	releaseMemory ()
CompBindings *	getActorBindings () const
CompBindings *	getChannelBindings () const
Private Attributes
CompBindings *	memActor
CompBindings *	memChannel

Detailed Description

Memory Container for tile memory.

Constructor & Destructor Documentation

Memory::Memory ( ArchComponent & c ) [inline]

References memActor, and memChannel.

virtual Memory::~Memory ( ) [inline, virtual]

References memActor, and memChannel.

Member Function Documentation

CSize Memory::availableMemorySize ( ) const

availableMemorySize () The function returns the amount of memory which is free.

References CompBindings::getCurVal(), CompBindings::getMaxVal(), memActor, and memChannel.

Referenced by SDFconvertToHTML::convertPlatformUsage(), createTileUsageNode(), outputSystemUsage(), reserveMemory(), and LoadBalanceBinding::sortTilesOnLoad().

Here is the call graph for this function:

CompBindings* Memory::getActorBindings ( ) const [inline]

References memActor.

Referenced by SDFconvertToHTML::convertPlatformMapping(), and createMappingNode().

CompBindings* Memory::getChannelBindings ( ) const [inline]

Referenced by SDFconvertToHTML::convertPlatformMapping(), and createMappingNode().

CSize Memory::getSize ( void ) const

getSize () Get the size of the memory.

References CompBindings::getMaxVal(), and memActor.

Referenced by SDFconvertToHTML::convertPlatformGraph(), SDFconvertToHTML::convertPlatformUsage(), createTileNode(), createTileUsageNode(), outputSystemUsage(), and LoadBalanceBinding::sortTilesOnLoad().

Here is the call graph for this function:

CSize Memory::occupiedMemorySizeByActors ( ) const

occupiedMemorySizeByActors () The function returns the amount of memory used by the bound actors.

References CompBindings::getCurVal(), and memActor.

Referenced by reserveMemory(), and LoadBalanceBinding::sortTilesOnLoad().

Here is the call graph for this function:

bool Memory::releaseMemory ( SDFchannel * c )

releaseMemory () The function releases the memory reserved by SDF channl c and removes its binding to the memory.

References memChannel, and CompBindings::unbind().

Here is the call graph for this function:

bool Memory::releaseMemory ( SDFactor * a )

releaseMemory () The function releases the memory reserved by SDF actor a and removes its binding to the memory.

References memActor, and CompBindings::unbind().

Referenced by LoadBalanceBinding::releaseConnectionResources(), LoadBalanceBinding::releaseResources(), and LoadBalanceBinding::updateStorageSpaceAllocation().

Here is the call graph for this function:

bool Memory::releaseMemory ( )

releaseMemory () The function releases the memory.

References memChannel, and CompBindings::unbind().

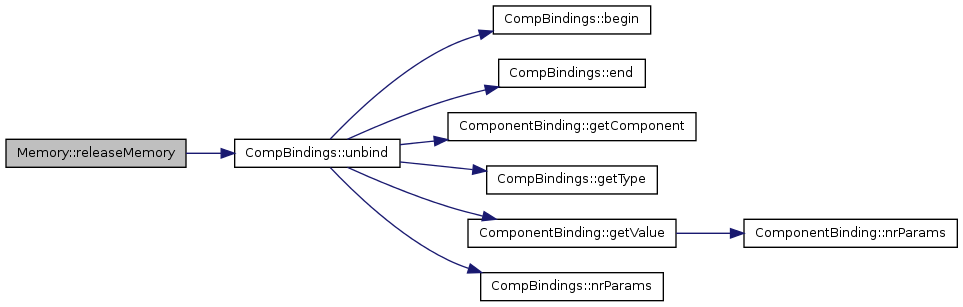

Here is the call graph for this function:

bool Memory::reserveMemory	(	SDFchannel *	c,
		CSize	sz
	)

reserveMemory () The function tries to reserve memory space with size sz for the SDF channl c. On success, it returns true and it creates a binding between the channel and the memory. Else, it returns false and no binding is created.

References availableMemorySize(), CompBindings::bind(), memChannel, and ComponentBinding::setValue().

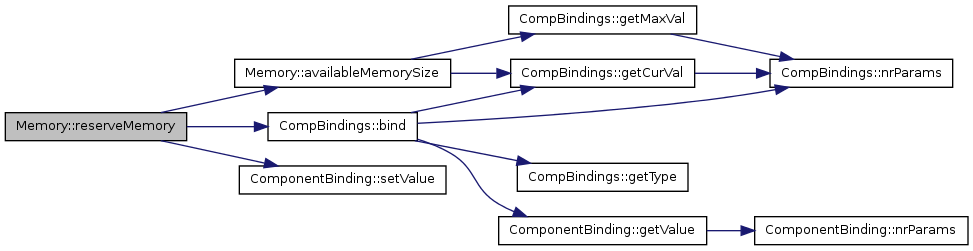

Here is the call graph for this function:

bool Memory::reserveMemory ( CSize sz )

reserveMemory () The function tries to reserve memory space with size sz. On success, it returns true. Else, it returns false and no binding is created.

References availableMemorySize(), CompBindings::bind(), memChannel, and ComponentBinding::setValue().

Here is the call graph for this function:

bool Memory::reserveMemory	(	SDFactor *	a,
		CSize	sz
	)

reserveMemory () The function tries to reserve memory space with size sz for the SDF actor a. On success, it returns true and it creates a binding between the actor and the memory. Else, it returns false and no binding is created.

References availableMemorySize(), CompBindings::bind(), memActor, occupiedMemorySizeByActors(), and ComponentBinding::setValue().

Referenced by LoadBalanceBinding::allocateConnectionResources(), LoadBalanceBinding::allocateResources(), setMappingMemory(), setUsagePlatformGraph(), and LoadBalanceBinding::updateStorageSpaceAllocation().

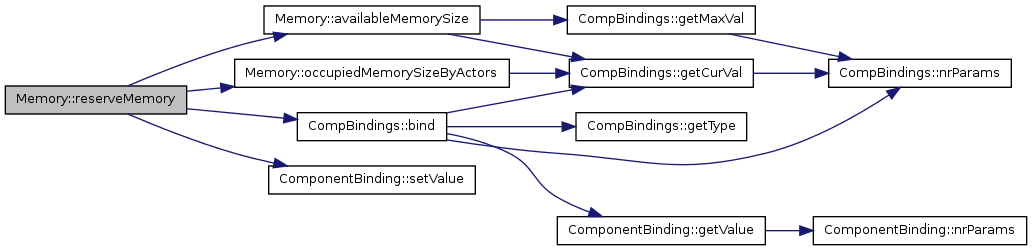

Here is the call graph for this function:
