csdf/base/algo/components.cc File Reference

#include "components.h"
#include "dfs.h"

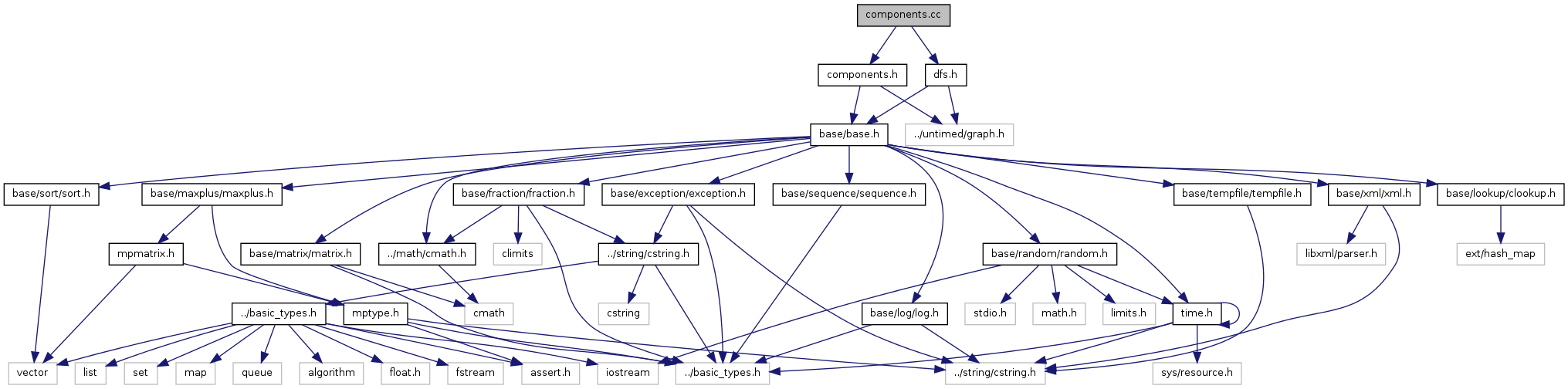

Include dependency graph for csdf/base/algo/components.cc:

Functions
static void	treeVisitChildren (CSDFgraph *g, CSDFactor **pi, CSDFactor *u, CSDFgraphComponent &comp)
static CSDFgraphComponents	getComponents (CSDFgraph *g, CSDFactor **pi)
CSDFgraphComponents	stronglyConnectedComponents (CSDFgraph *g)
bool	actorInComponent (CSDFactor *a, CSDFgraphComponent &component)
bool	isStronglyConnectedGraph (CSDFgraph *g)
CSDFgraph *	componentToCSDFgraph (CSDFgraphComponent &component)

---

Function Documentation

bool actorInComponent	(	CSDFactor *	a,
		CSDFgraphComponent &	component
	)

actorInComponent () The function check wether an actor is in a component. If so, the function returns true. Else it returns false.

References CSDFcomponent::getId().

Referenced by componentToCSDFgraph(), componentToSDFgraph(), makeStronglyConnected(), and sdfComponentToGraph().

Here is the call graph for this function:

CSDFgraph* componentToCSDFgraph

(

CSDFgraphComponent &

component

)

componentToSDFgraph () The function returns an SDF graph containing all actors and channels inside the component.

References a, actorInComponent(), c, CSDFgraph::clone(), g, CSDFchannel::getDstActor(), CSDFchannel::getDstPort(), CSDFcomponent::getId(), CSDFcomponent::getName(), CSDFcomponent::getParent(), CSDFchannel::getSrcActor(), CSDFchannel::getSrcPort(), CSDFactor::removePort(), and v.

Referenced by CSDFstateSpaceThroughputAnalysis::analyze().

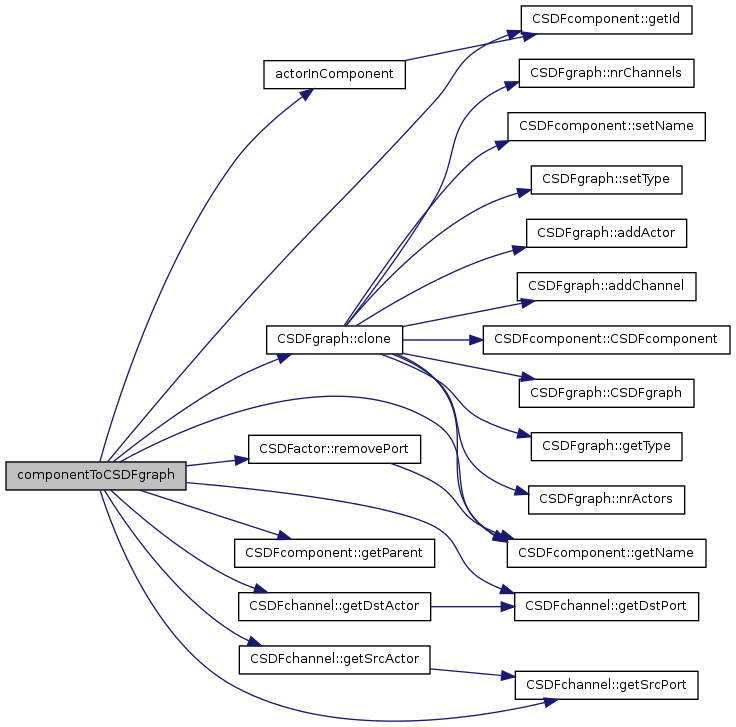

Here is the call graph for this function:

static CSDFgraphComponents getComponents	(	CSDFgraph *	g,
		CSDFactor **	pi
	)			[static]

getComponents () The function determines the strongly connected components in the graph. To do this, it performs depth-first walk on the forest given by 'pi'.

References CSDFgraph::getActor(), CSDFgraph::nrActors(), and treeVisitChildren().

Referenced by stronglyConnectedComponents().

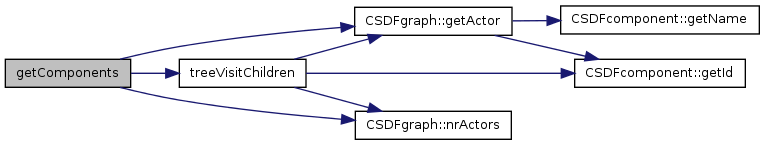

Here is the call graph for this function:

bool isStronglyConnectedGraph

(

CSDFgraph *

g

)

isStronglyConnectedGraph () The function checks that the graph is a strongly connnected component.

References c, and stronglyConnectedComponents().

Referenced by SDFstateSpaceBindingAwareThroughputAnalysis::analyze(), SDFstateSpaceThroughputAnalysis::analyze(), CSDFstateSpaceThroughputAnalysis::analyze(), SDFstateSpaceSelfTimedMinimalLatencyAnalysis::analyze(), SDFstateSpaceSelfTimedLatencyAnalysis::analyze(), SDFstateSpaceMinimalLatencyAnalysis::analyze(), SDFstateSpaceMinimalLatencyAnalysis::analyzeSingleProc(), makeStronglyConnected(), maximumCycleMeanDasdanGupta(), maximumCycleMeanHoward(), maximumCycleMeanKarp(), maximumCycleYoungTarjanOrlin(), SDFstateSpaceStaticPeriodicSchedulerChao::schedule(), SDFstateSpaceStaticPeriodicScheduler::schedule(), SDFstateSpacePriorityListScheduler::schedule(), SDFstateSpaceListScheduler::schedule(), stateSpaceAbstractDepGraph(), and SDFstateSpaceTraceInterconnectCommunication::trace().

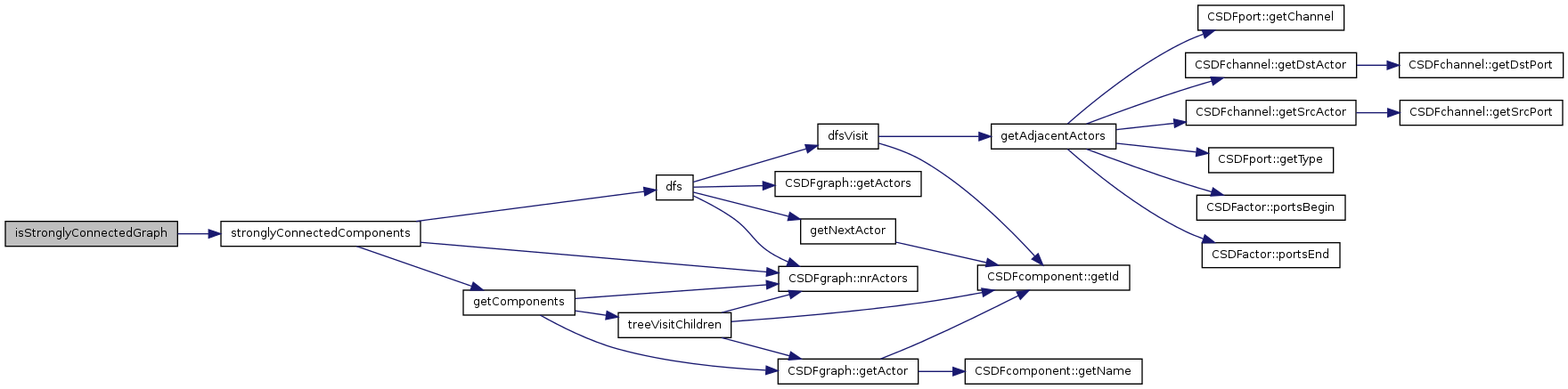

Here is the call graph for this function:

CSDFgraphComponents stronglyConnectedComponents

(

CSDFgraph *

g

)

stronglyConnectedComponents () The function determines the strongly connected components in the graph.

References ASSERT, dfs(), getComponents(), CSDFgraph::nrActors(), and pi.

Referenced by SDFstateSpaceThroughputAnalysis::analyze(), CSDFstateSpaceThroughputAnalysis::analyze(), analyzeSDFG(), distributeInitialTokens(), findSimpleCycle(), findSimpleCycles(), isAcyclic(), isStronglyConnectedGraph(), makeStronglyConnected(), and mcmSimpleCycles().

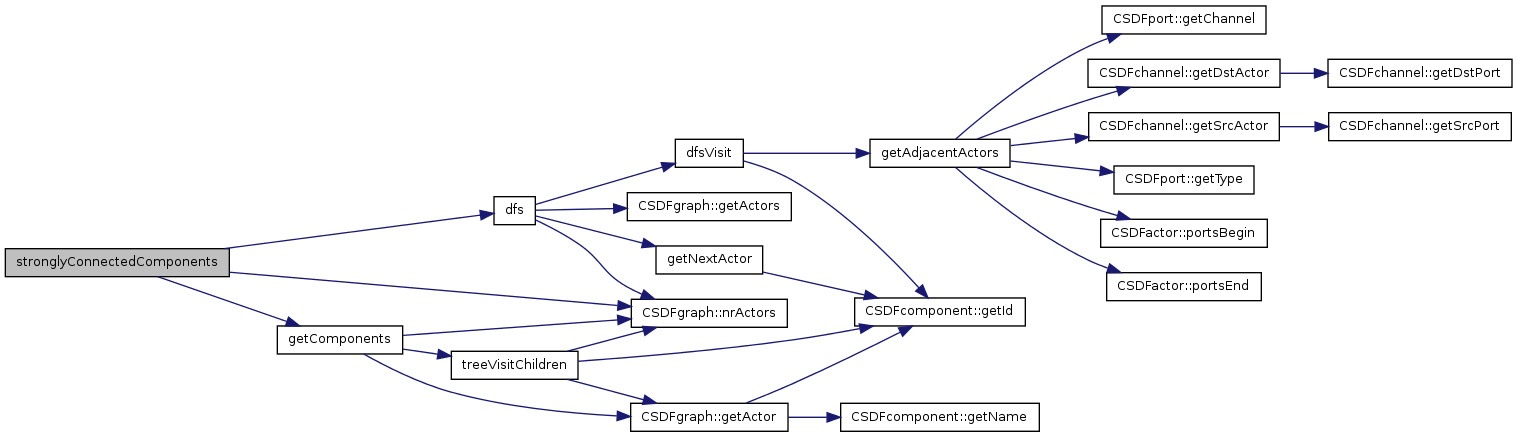

Here is the call graph for this function:

static void treeVisitChildren	(	CSDFgraph *	g,
		CSDFactor **	pi,
		CSDFactor *	u,
		CSDFgraphComponent &	comp
	)			[static]

treeVisitChildren () The function visits all children of the actor 'u'. The parent-child relation is given via the vector 'pi'. Each child is added to the component 'comp'.

References CSDFgraph::getActor(), CSDFcomponent::getId(), CSDFgraph::nrActors(), and v.

Referenced by getComponents().

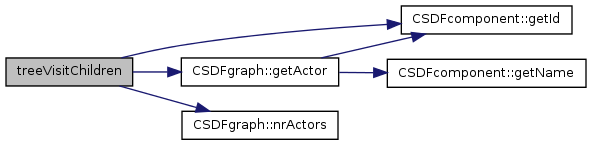

Here is the call graph for this function:
