#include <binding_aware_sdfg.h>

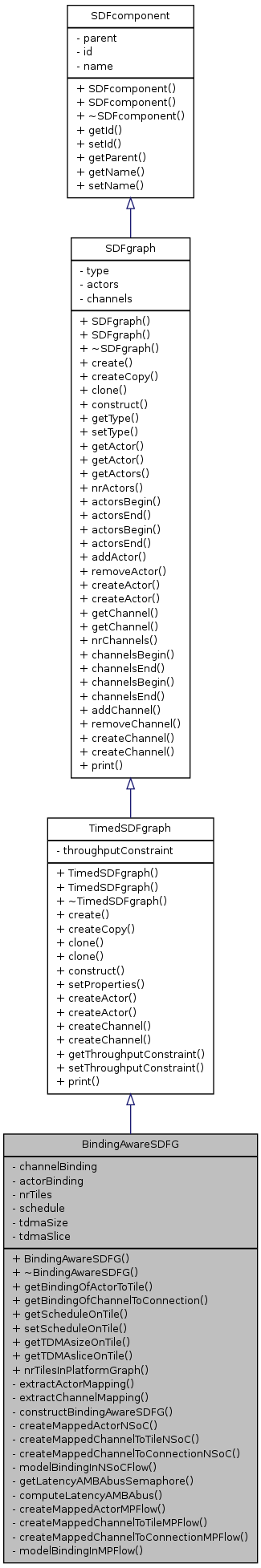

Inheritance diagram for BindingAwareSDFG:

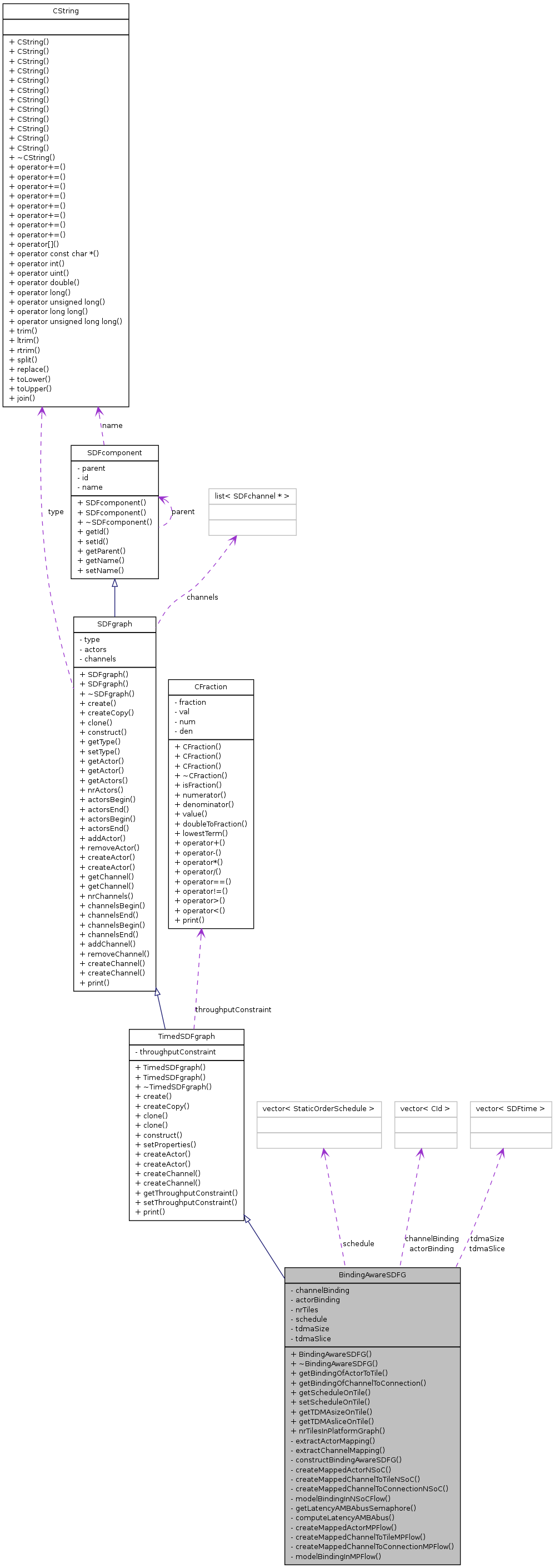

Collaboration diagram for BindingAwareSDFG:

Public Member Functions
	BindingAwareSDFG (TimedSDFgraph constrainedSDFG, PlatformGraph platformGraph, SDFflowType flowType)
	~BindingAwareSDFG ()
CId	getBindingOfActorToTile (SDFactor *a)
CId	getBindingOfChannelToConnection (SDFchannel *c)
StaticOrderSchedule &	getScheduleOnTile (CId tileId)
void	setScheduleOnTile (CId tileId, StaticOrderSchedule &s)
SDFtime	getTDMAsizeOnTile (CId tileId) const
SDFtime	getTDMAsliceOnTile (CId tileId) const
uint	nrTilesInPlatformGraph () const
Private Member Functions
void	extractActorMapping (TimedSDFgraph constrainedSDFG, PlatformGraph platformGraph)
void	extractChannelMapping (TimedSDFgraph constrainedSDFG, PlatformGraph platformGraph)
void	constructBindingAwareSDFG (TimedSDFgraph constrainedSDFG, PlatformGraph platformGraph, SDFflowType flowType)
void	createMappedActorNSoC (TimedSDFactor a, Tile t)
void	createMappedChannelToTileNSoC (TimedSDFchannel c, Tile t)
void	createMappedChannelToConnectionNSoC (TimedSDFchannel ch, Connection cn)
void	modelBindingInNSoCFlow (TimedSDFgraph g, PlatformGraph ag)
SDFtime	getLatencyAMBAbusSemaphore ()
SDFtime	computeLatencyAMBAbus (CSize tokenSize)
void	createMappedActorMPFlow (TimedSDFactor a, Tile t)
void	createMappedChannelToTileMPFlow (TimedSDFchannel c, Tile t)
void	createMappedChannelToConnectionMPFlow (TimedSDFchannel ch, Connection cn)
void	modelBindingInMPFlow (TimedSDFgraph g, PlatformGraph ag)
Private Attributes
vector< CId >	channelBinding
vector< CId >	actorBinding
uint	nrTiles
vector< StaticOrderSchedule >	schedule
vector< SDFtime >	tdmaSize
vector< SDFtime >	tdmaSlice

Detailed Description

BindingAwareSDFG () Binding-aware SDFG.

Constructor & Destructor Documentation

BindingAwareSDFG::BindingAwareSDFG	(	TimedSDFgraph *	constrainedSDFG,
		PlatformGraph *	platformGraph,
		SDFflowType	flowType
	)

BindingAwareSDFG () Constructor.

References ASSERT, constructBindingAwareSDFG(), extractActorMapping(), and extractChannelMapping().

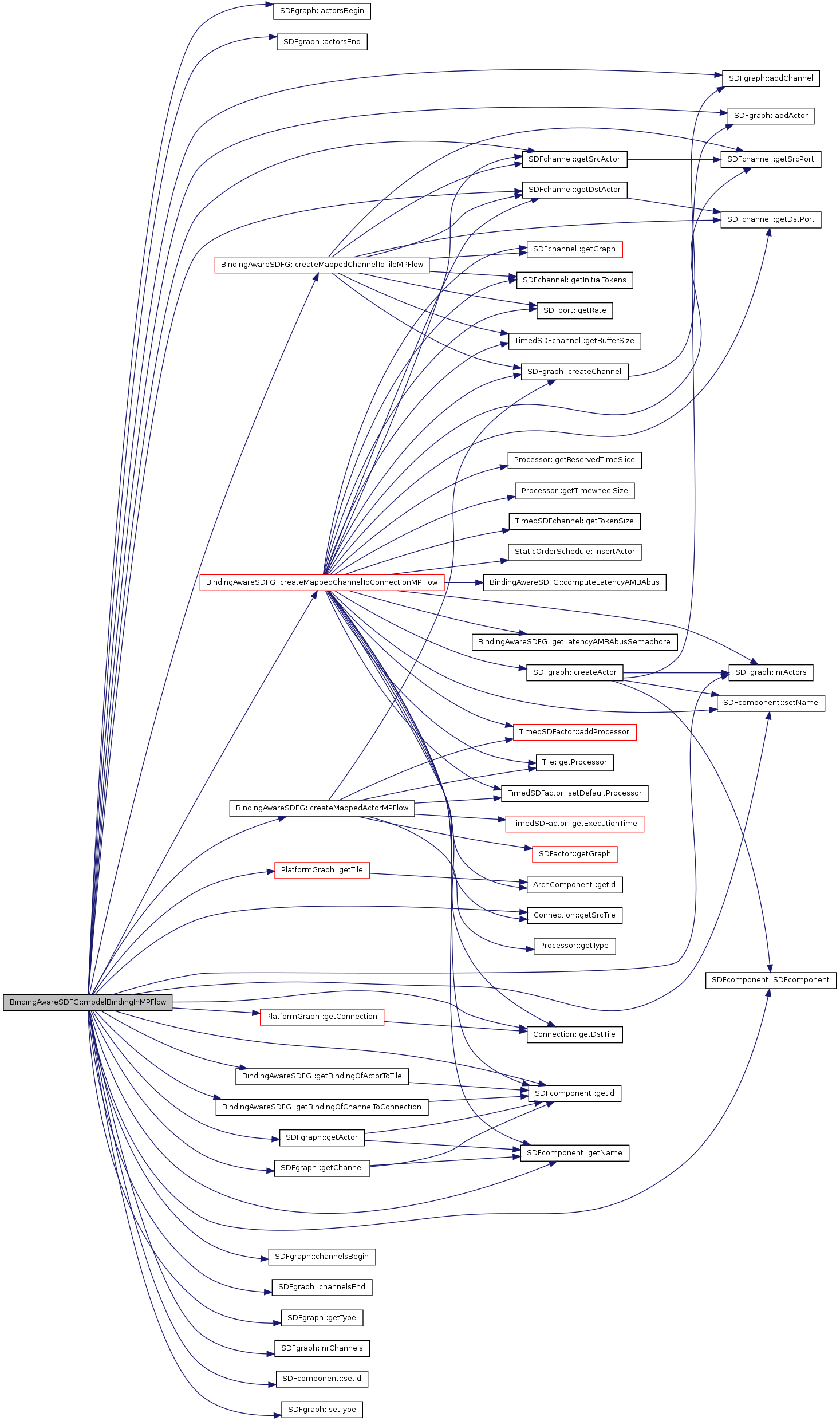

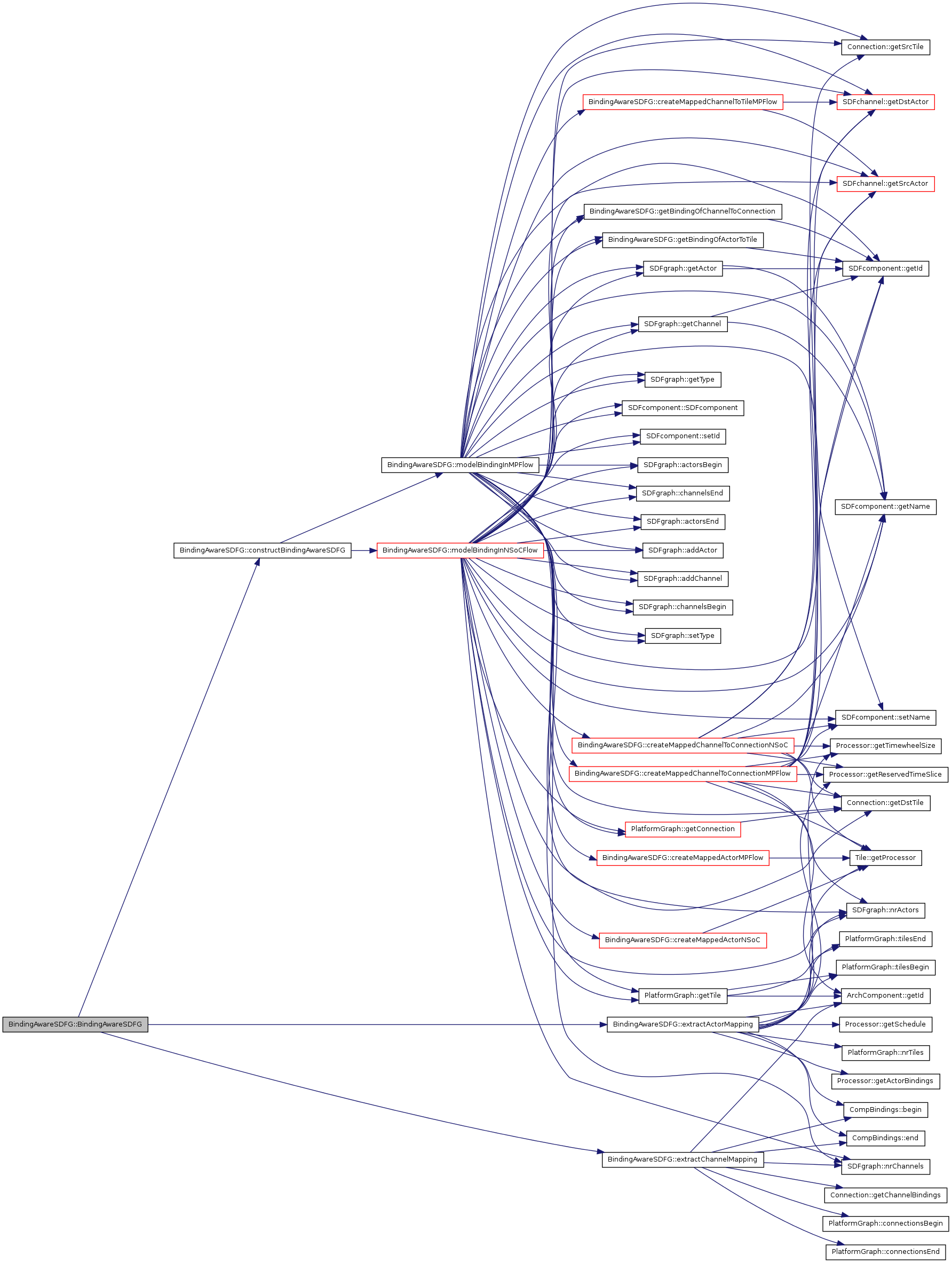

Here is the call graph for this function:

BindingAwareSDFG::~BindingAwareSDFG ( ) [inline]

Member Function Documentation

SDFtime BindingAwareSDFG::computeLatencyAMBAbus ( CSize tokenSize ) [private]

computeLatencyAMBAbus () The function takes as an argument the size of a token (in bits) and returns the time needed to transfer this token over the AMBA bus.

Referenced by createMappedChannelToConnectionMPFlow().

void BindingAwareSDFG::constructBindingAwareSDFG	(	TimedSDFgraph *	constrainedSDFG,
		PlatformGraph *	platformGraph,
		SDFflowType	flowType
	)			`[private]`

constructBindingAwareSDFG () Create a binding-aware SDFG for the constrained SDFG taking into account the properties of the platform graph and the mapping as specified in the same graph. Note that this function is just a shell to select the correct flow model. The actual binding-aware SDFG construction is done in a different function.

References modelBindingInMPFlow(), modelBindingInNSoCFlow(), SDFflowTypeMPFlow, and SDFflowTypeNSoC.

Referenced by BindingAwareSDFG().

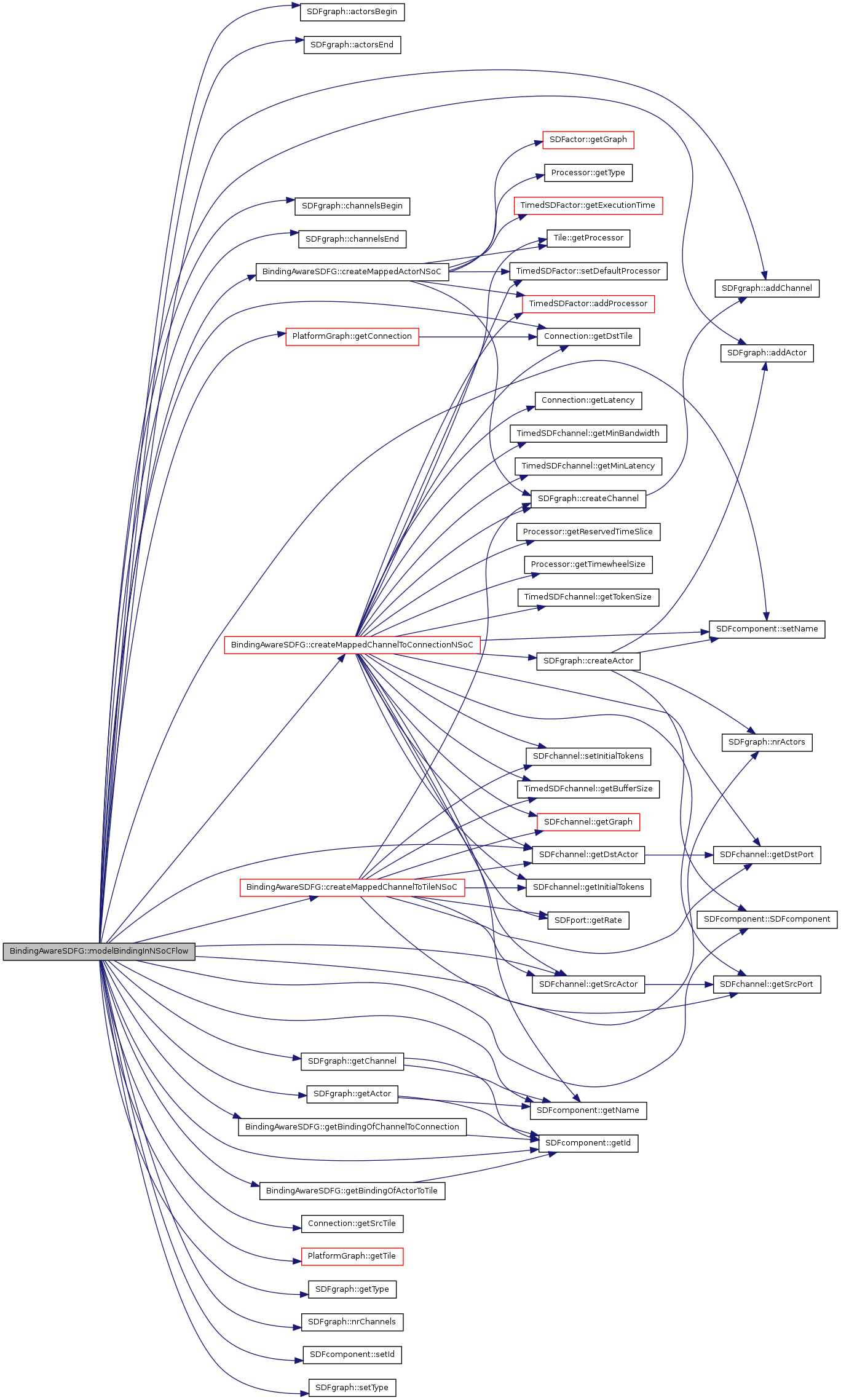

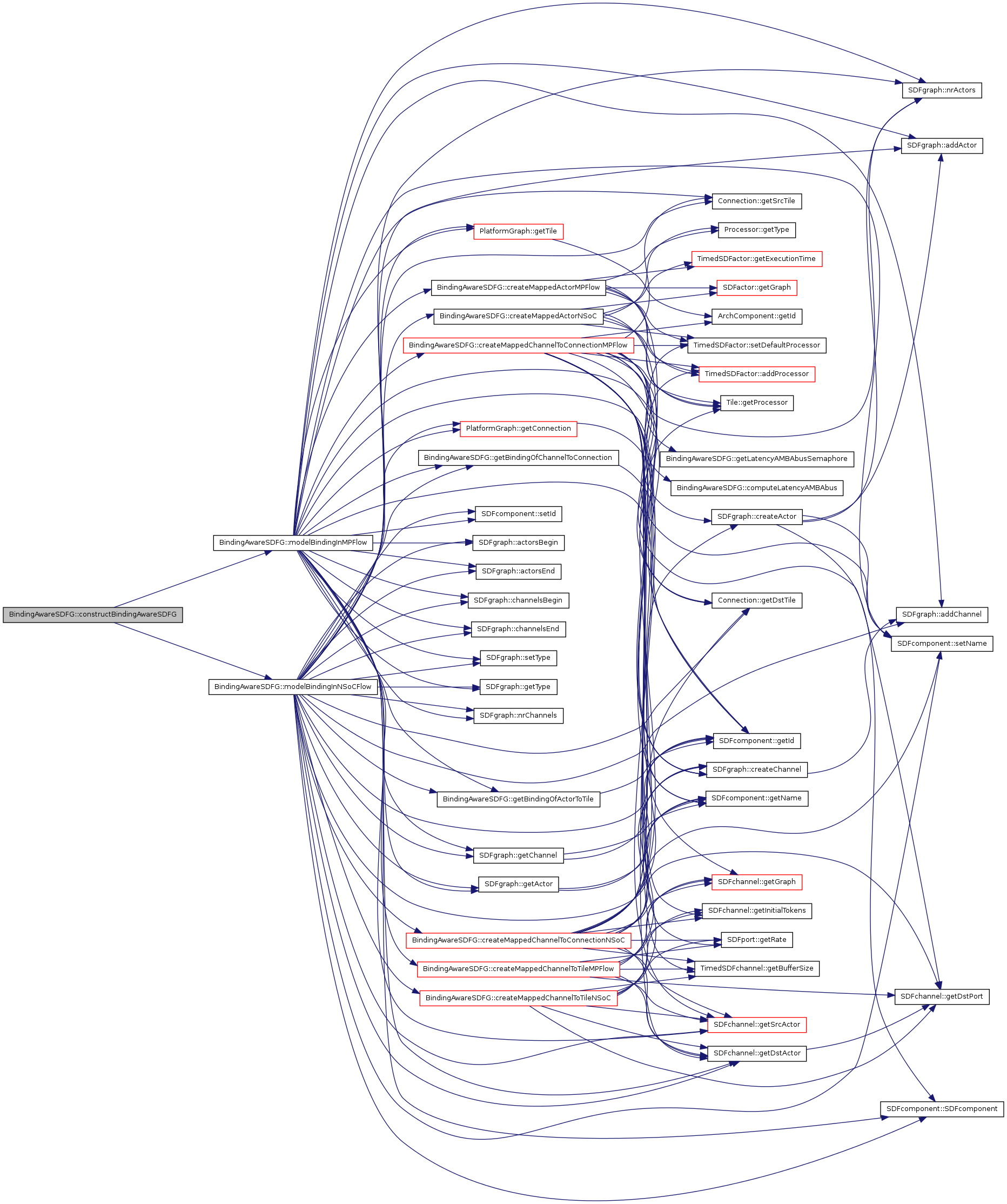

Here is the call graph for this function:

void BindingAwareSDFG::createMappedActorMPFlow	(	TimedSDFactor *	a,
		Tile *	t
	)			`[private]`

createMappedActorMPFlow () The function models an actor mapped to a tile.

References TimedSDFactor::addProcessor(), c, SDFgraph::createChannel(), TimedSDFactor::_Processor::execTime, TimedSDFactor::getExecutionTime(), SDFactor::getGraph(), Tile::getProcessor(), Processor::getType(), TimedSDFactor::setDefaultProcessor(), TimedSDFactor::_Processor::stateSize, and TimedSDFactor::_Processor::type.

Referenced by modelBindingInMPFlow().

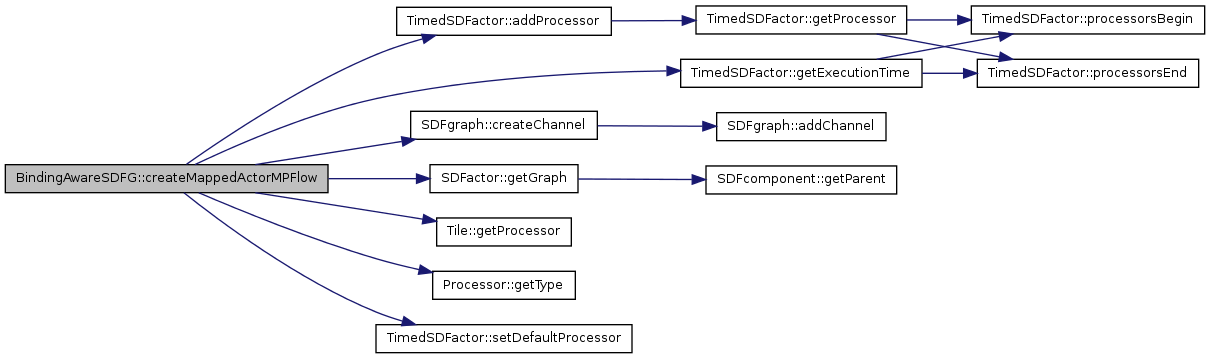

Here is the call graph for this function:

void BindingAwareSDFG::createMappedActorNSoC	(	TimedSDFactor *	a,
		Tile *	t
	)			`[private]`

createMappedActorNSoC () The function models an actor mapped to a tile.

References TimedSDFactor::addProcessor(), c, SDFgraph::createChannel(), TimedSDFactor::_Processor::execTime, TimedSDFactor::getExecutionTime(), SDFactor::getGraph(), Tile::getProcessor(), Processor::getType(), TimedSDFactor::setDefaultProcessor(), TimedSDFactor::_Processor::stateSize, and TimedSDFactor::_Processor::type.

Referenced by modelBindingInNSoCFlow().

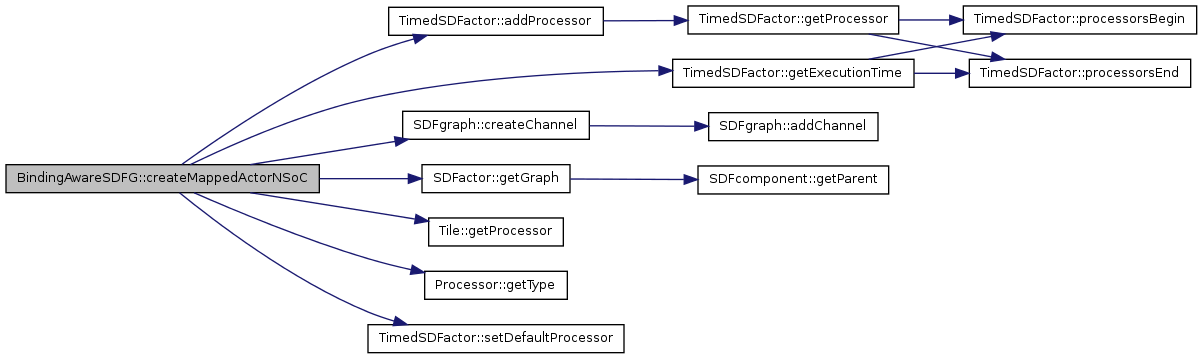

Here is the call graph for this function:

void BindingAwareSDFG::createMappedChannelToConnectionMPFlow	(	TimedSDFchannel *	ch,
		Connection *	cn
	)			`[private]`

createMappedChannelToConnectionMPFlow () The function models a channel mapped to a connection.

References actorBinding, TimedSDFactor::addProcessor(), computeLatencyAMBAbus(), SDFgraph::createActor(), SDFgraph::createChannel(), TimedSDFactor::_Processor::execTime, g, TimedSDFchannel::getBufferSize(), SDFchannel::getDstActor(), SDFchannel::getDstPort(), Connection::getDstTile(), SDFchannel::getGraph(), ArchComponent::getId(), SDFcomponent::getId(), SDFchannel::getInitialTokens(), getLatencyAMBAbusSemaphore(), SDFcomponent::getName(), Tile::getProcessor(), SDFport::getRate(), Processor::getReservedTimeSlice(), SDFchannel::getSrcActor(), SDFchannel::getSrcPort(), Connection::getSrcTile(), Processor::getTimewheelSize(), TimedSDFchannel::getTokenSize(), StaticOrderSchedule::insertActor(), SDFgraph::nrActors(), schedule, TimedSDFactor::setDefaultProcessor(), SDFchannel::setInitialTokens(), SDFcomponent::setName(), TimedSDFactor::_Processor::stateSize, and TimedSDFactor::_Processor::type.

Referenced by modelBindingInMPFlow().

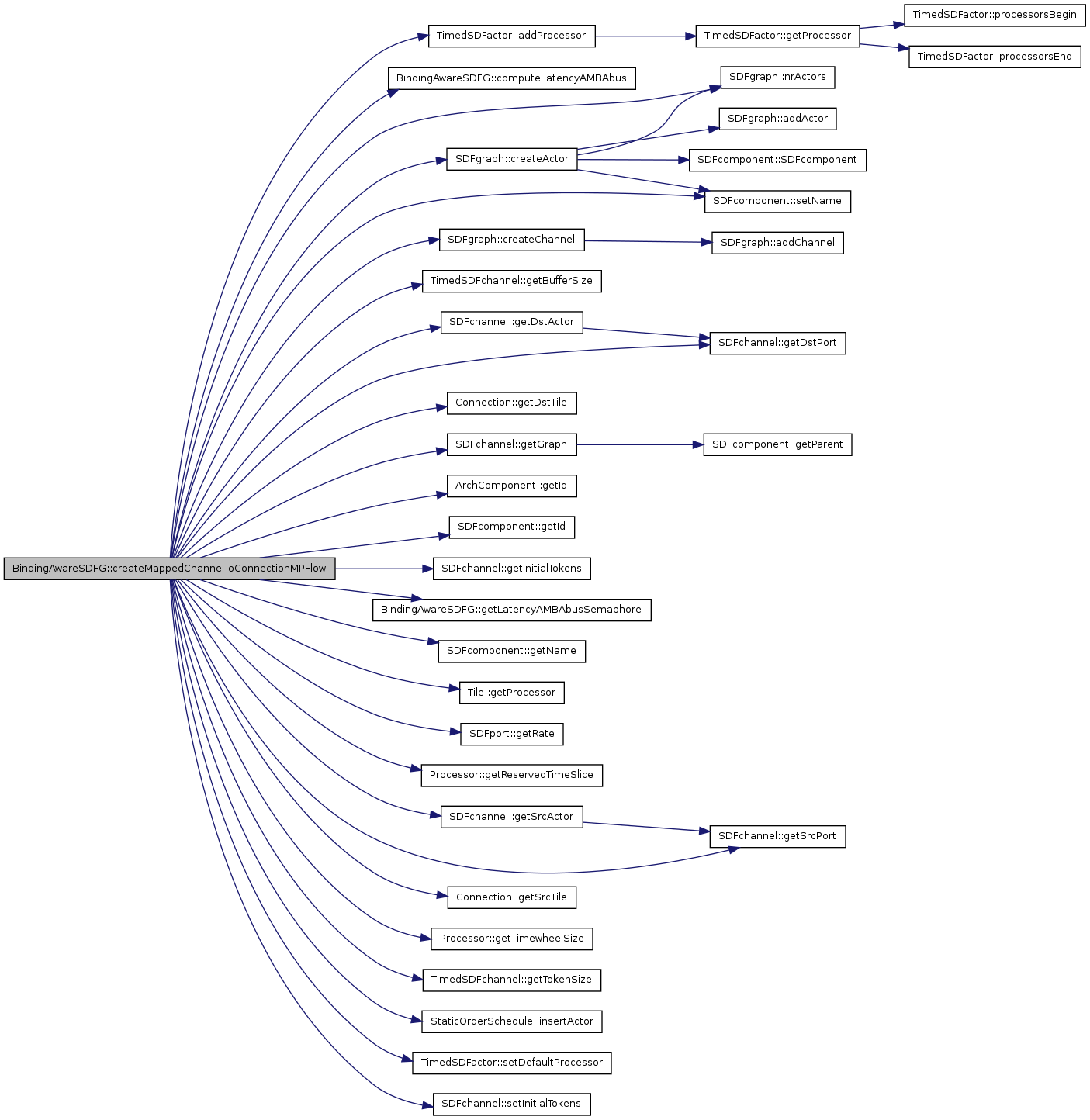

Here is the call graph for this function:

void BindingAwareSDFG::createMappedChannelToConnectionNSoC	(	TimedSDFchannel *	ch,
		Connection *	cn
	)			`[private]`

createMappedChannelToConnectionNSoC () The function models a channel mapped to a connection.

References TimedSDFactor::addProcessor(), c, SDFgraph::createActor(), SDFgraph::createChannel(), TimedSDFactor::_Processor::execTime, g, TimedSDFchannel::getBufferSize(), SDFchannel::getDstActor(), SDFchannel::getDstPort(), Connection::getDstTile(), SDFchannel::getGraph(), SDFchannel::getInitialTokens(), Connection::getLatency(), TimedSDFchannel::getMinBandwidth(), TimedSDFchannel::getMinLatency(), SDFcomponent::getName(), Tile::getProcessor(), SDFport::getRate(), Processor::getReservedTimeSlice(), SDFchannel::getSrcActor(), SDFchannel::getSrcPort(), Processor::getTimewheelSize(), TimedSDFchannel::getTokenSize(), TimedSDFactor::setDefaultProcessor(), SDFchannel::setInitialTokens(), SDFcomponent::setName(), TimedSDFchannel::setStorageSpaceChannel(), TimedSDFactor::_Processor::stateSize, and TimedSDFactor::_Processor::type.

Referenced by modelBindingInNSoCFlow().

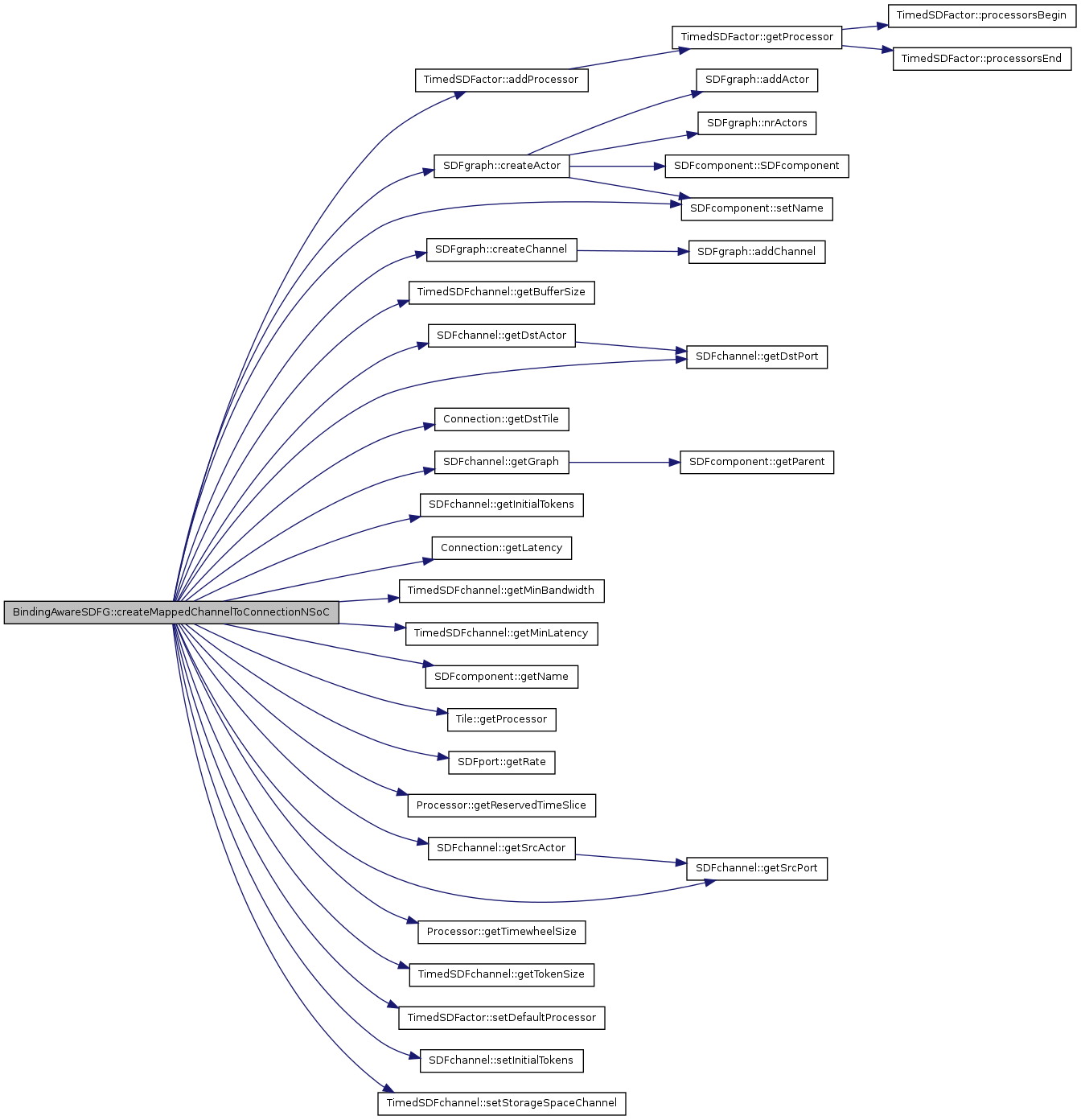

Here is the call graph for this function:

void BindingAwareSDFG::createMappedChannelToTileMPFlow	(	TimedSDFchannel *	c,
		Tile *	t
	)			`[private]`

createMappedChannelToTileMPFlow () The function models a channel mapped to a tile.

References SDFgraph::createChannel(), g, TimedSDFchannel::getBufferSize(), SDFchannel::getDstActor(), SDFchannel::getDstPort(), SDFchannel::getGraph(), SDFchannel::getInitialTokens(), SDFport::getRate(), SDFchannel::getSrcActor(), SDFchannel::getSrcPort(), SDFchannel::setInitialTokens(), and TimedSDFchannel::setStorageSpaceChannel().

Referenced by modelBindingInMPFlow().

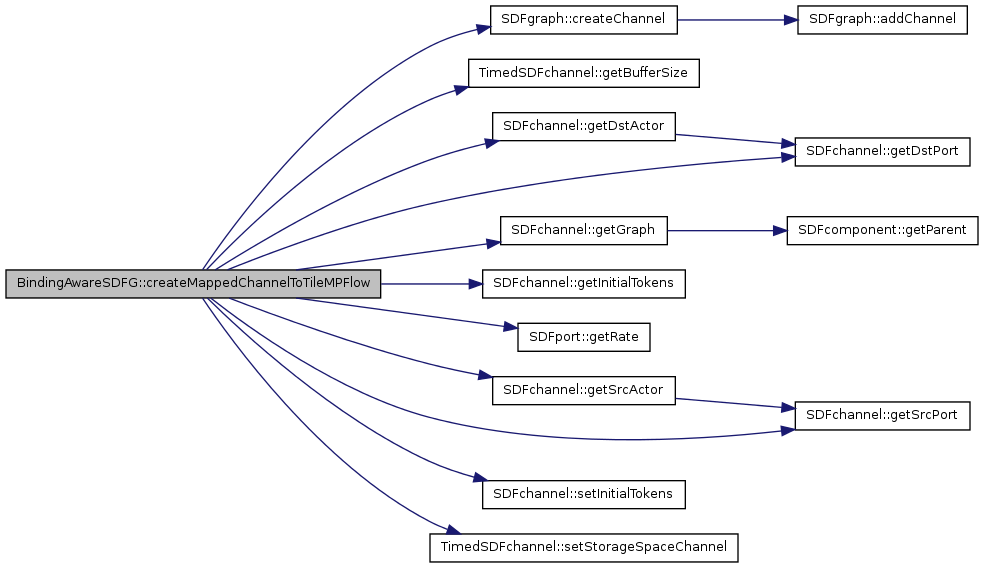

Here is the call graph for this function:

void BindingAwareSDFG::createMappedChannelToTileNSoC	(	TimedSDFchannel *	c,
		Tile *	t
	)			`[private]`

createMappedChannelToTileNSoC () The function models a channel mapped to a tile.

References SDFgraph::createChannel(), g, TimedSDFchannel::getBufferSize(), SDFchannel::getDstActor(), SDFchannel::getDstPort(), SDFchannel::getGraph(), SDFchannel::getInitialTokens(), SDFport::getRate(), SDFchannel::getSrcActor(), SDFchannel::getSrcPort(), SDFchannel::setInitialTokens(), and TimedSDFchannel::setStorageSpaceChannel().

Referenced by modelBindingInNSoCFlow().

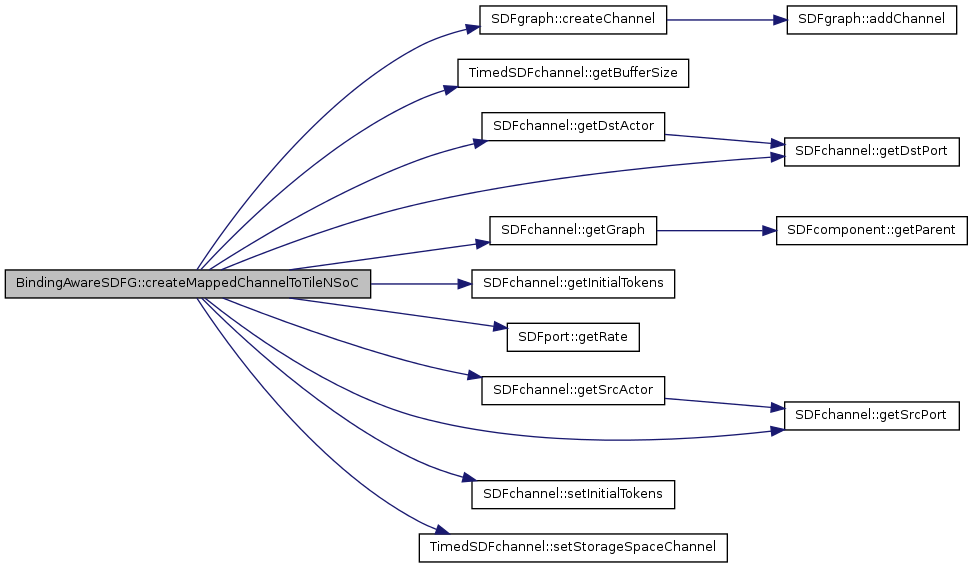

Here is the call graph for this function:

void BindingAwareSDFG::extractActorMapping	(	TimedSDFgraph *	constrainedSDFG,
		PlatformGraph *	platformGraph
	)			`[private]`

extractActorMapping () The function extracts the actor binding and scheduling from the platform graph. This information is stored in the object variables 'actorBinding', 'nrTiles', 'schedule', 'tdmaSize', and 'tdmaSlice'.

References ACTOR_NOT_BOUND, actorBinding, ASSERT, CompBindings::begin(), CompBindings::end(), Processor::getActorBindings(), ArchComponent::getId(), Tile::getProcessor(), Processor::getReservedTimeSlice(), Processor::getSchedule(), Processor::getTimewheelSize(), SDFgraph::nrActors(), PlatformGraph::nrTiles(), nrTiles, schedule, tdmaSize, tdmaSlice, PlatformGraph::tilesBegin(), and PlatformGraph::tilesEnd().

Referenced by BindingAwareSDFG().

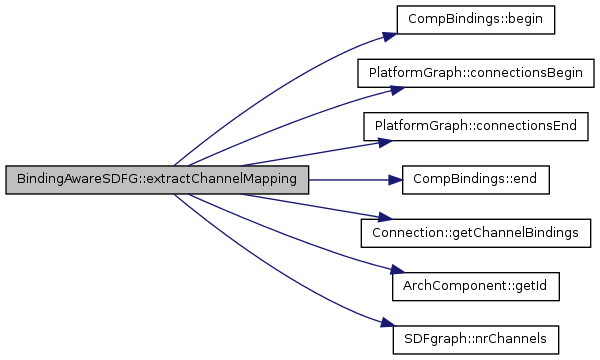

Here is the call graph for this function:

void BindingAwareSDFG::extractChannelMapping	(	TimedSDFgraph *	constrainedSDFG,
		PlatformGraph *	platformGraph
	)			`[private]`

extractChannelMapping () The function extracts the actor binding and scheduling from the platform graph. This information is stored in the object variable 'channelBinding'.

References ASSERT, CompBindings::begin(), c, CHANNEL_NOT_BOUND, channelBinding, PlatformGraph::connectionsBegin(), PlatformGraph::connectionsEnd(), CompBindings::end(), Connection::getChannelBindings(), ArchComponent::getId(), and SDFgraph::nrChannels().
